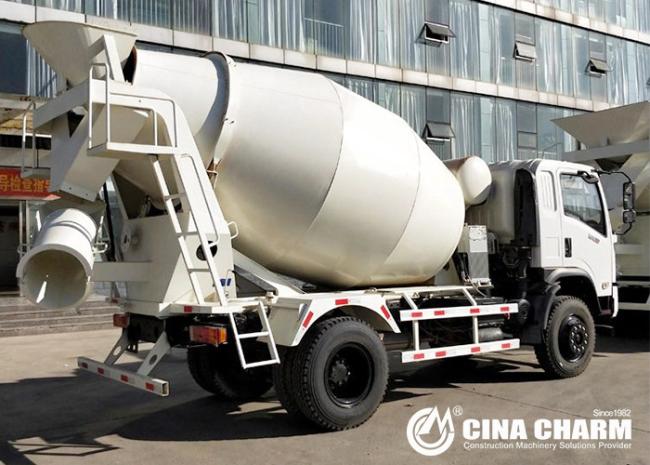

Diesel 6M3 concrete mixer drum for concrete mixer truck

1. A concrete mixer (concrete mixer truck) used for transporting concrete building dedicated truck, concrete from the concrete mixing station rushed to the construction site received. Such trucks are cylindrical mixing drum unit for the carriage of mixed concrete. During transport will always be kept rotating mixing drum in order to ensure that the carriage of the concrete not be solidified.

2. From the vehicle chassis, the mixing tube, transmission, water supply device and other components. Hydraulic pumps, reducer and motor are used in imported parts, customers can choose their own good performance domestic parts.

Product Description

Hydraulic system: It is imported from German and Japan, the structure is simple and reliable.

Water supply system: It supplies water by pressure, which saves the labor intensity and reduces thecar weight.

Mixng drum: It is pear shaped and has dual helical blades, which improves the concrete quality; The

installing angle of the drum is small, which reduces the vehicle center of gravity and is conducive

to the clean discharge of the concrete.

Control device: It can be divided into soft shaft manipulator and link manipulator, which can achieve

the multiple points charging and discharging control; the charging hopper and discharging chute can

rotate 180 degree in the horizontal direction to adapt to different position.

Maintenance

Since concrete solidified into lumps in a short time, and the steel and paint has some corrosion, so the concrete tank after each use, wash and adhere to the concrete tank on the material inlet and outlet of the concrete is a daily maintenance must work seriously. Including:

a. Rinse with water before each filling inlet, so that when the inlet kept moist during charging;

b. At the same time charging comes to vehicle wash water tank filled with water;

c. After loading washing Inlet, near the mouth of the feed residue washed concrete;

d. To the site after unloading, rinse out the chute, and then added to the concrete tank cleaning water within 30-40 L; return the vehicle to keep the concrete tank forward slow rotation;

e. Remember to let go before the next charging within the concrete tank sewage;

f. Each day when the concrete tank and thoroughly clean out material around the mouth, to ensure non-stick cake with cement and concrete.
