Pld1600 Three Bins Concrete Batching Machine , Cement Aggregate Batcher
Price:
Negotiable
MOQ:
1 set
Delivery Time:
5 working days after we got advanced payment
Brand:
CINACHARM
Product Description
pld1600 High Quality automatic Batcher Machine High accuracy PLD1600 aggregate batching machine for concrete plant
pld1600 three bins concrete aggregate machine
Concrete batching machine is used for the aggregates batching for concrete mixing station. The aggregates can be 2-4 types, such as coarse stone, fine stone, sand and others. The proportion of each aggregate is weighed automatically controlled by microcomputer. There are hopper cumulative weighing, belt cumulative weighing and separated hopper weighing
|
Model No.
|
PLD600
|
PLD800
|
PLD1200
|
PLD1600
|
PLD2400
|
PLD3200
|
PLD4800
|
|
Weighing bucket capacity(L)
|
600L
|
800L
|
1200L
|
1600L
|
4*1200L
|
4*1500L
|
4*2000L
|
|
Capacity of storage hopper(m³)
|
2*1.4
|
2*2
|
2*3.5
|
2*5
|
4*15
|
4*18
|
4*23
|
|
Theoretical productivity(m³/h)
|
18
|
48
|
56
|
75
|
120
|
160
|
180
|
|
Accuracy of batching
|
±2%
|
±2%
|
±2%
|
±2%
|
±2%
|
±2%
|
±2%
|
|
Max. Weighing (kg)
|
1500
|
2000
|
3000
|
3000
|
4000
|
5000
|
8000
|
|
Belt conveyor speed(m/s)
|
1.25
|
1.25
|
1.25
|
1.4
|
1.25
|
1.4
|
1.25
|
|
Power(kw)
|
3*3
|
3*2.2
|
3*3
|
3*5.5
|
11
|
15
|
18.5
|

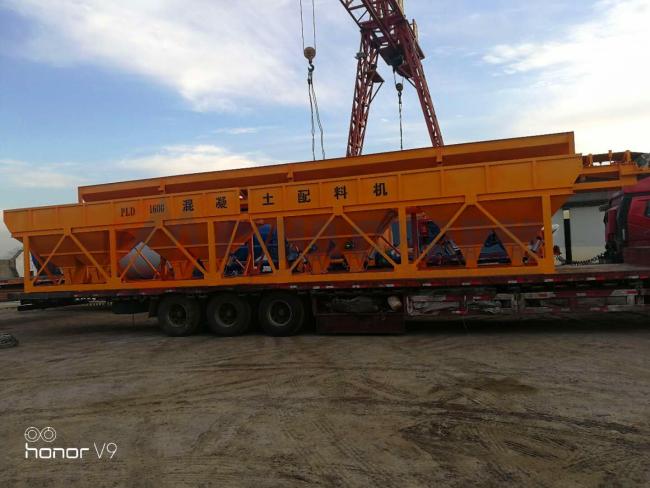

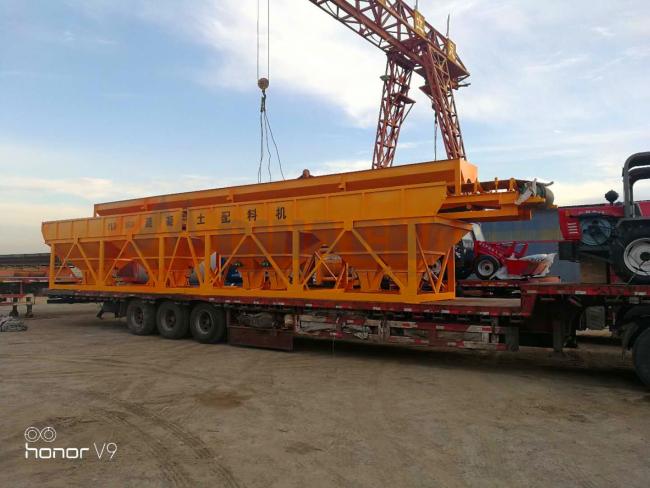

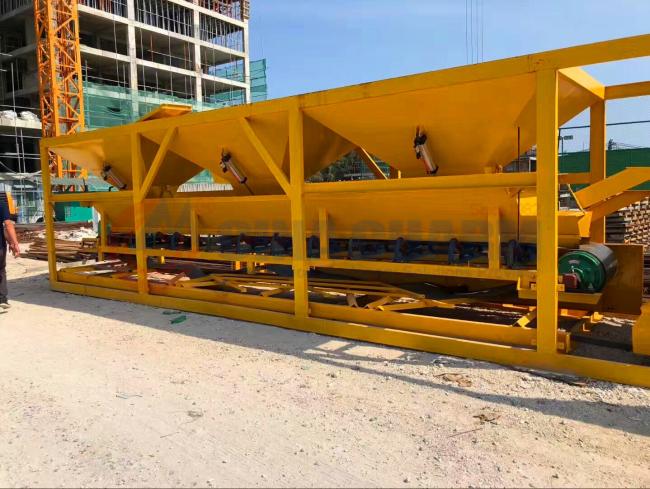

pld1600 three bins hopper concrete batch machine
PLD1600 batching machine is small automatic concrete batching equipment, which can be combined with cement silos. PLD1600 adopts imported sensors, which is quick to response and accurate; the single-hopper modular design is flexible for installation. The weighing capacity is 1600L, the batching accuracy is ±2%, production capacity is 80m³/h. PLD1600 batching machine is ideal concrete or brick aggregate batching equipment.
