400T Mobile Type Stabilized Soil Mixing Station For Road Construction Projects
400T mobile stabilized soil mixing plant for sale Factory Supply Stabilized Soil Mobile Concrete Mixing Plant

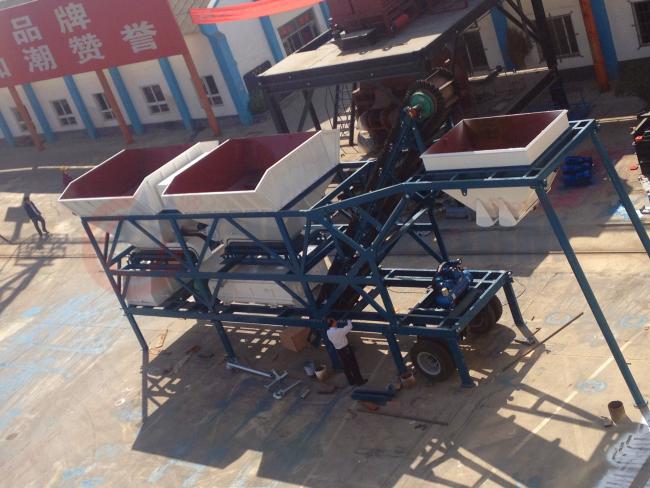

1 .The YWCB mobile type stabilized soil mixing plant is a state of the art mechanical device which integrates material collection bin, weigh hopper, conveyor, mixer, lifter, and storage tank onto a trailing unit. It is specifically suitable for use in road construction projects where the plant needs to be transferred over long distance to multiple job sites. Additionally, the equipment also finds wide applications in large square, airport, municipal engineering, and mine road construction projects.
2 .Compact in design, the mixing plant is comprised of five parts, including grained material feeder, stabilizer (including cement or pulverized lime) feeder, water supply system, mixer, material conveying and storage system, and electrical control system. A key feature that differs our plant from previous models is its weighing system, which allows accurate measurement of the ingredients. Further benefits include even mixing and maximum
3 .Comprehensive performance. By simply pulling the trailer, you can take the plant to any job site for use.The central electrical control system of our mixing plant adopts the electromagnetic motor to exercise speed control, which ensures a steady, continuous supply of aggregates and pulverized minerals. The electrical parts are selected from well recognized names, such as Schneider, CHINT, and LG.
4 .With the aid of the control system, users can preset the output and mixing ratio of multiple materials. This process is easy to be done and guarantees batching precision. Both automatic and manual control modes are provided to operators. Other functions include automatic abnormal operating condition alarming and emergency stop.
5 .As a China-based mobile type stabilized soil mixing plant manufacturer and supplier, at Nanqiao we also offer asphalt recycling plant, mobile drum mix asphalt plant, ready-mix concrete plant, mobile concrete batching plant, and more.
Introduction of China YWMCB400 good quality cheap 300T soil mixing plant for sale
1.YWMCB series stabilization soil mixing equipment is required for grass-roots material construction ,such as road, city way, airport, playground and etc.
2.we utilized advanced technology to study producing at home and abroad, which is special for mixing plant.
3.Raw material It can use lime, soil, sand, fly ash, cement and etc. raw material, and for producing cement stabilization grit, ashes stabilization base material, meanwhile, it can press concrete and etc. base material.
4.There is two kinds that is moveable and modular ones up to construction requirement.
|
Model
|
YWMCB300
|
YWMCB400
|
YWMCB500
|
YWMCB600
|
|
|
Ralted Productivity(t/h)
|
300
|
400
|
500
|
600
|
|
|
Aggregate size(mm)
|
≤60
|
≤60
|
≤60
|
≤60
|
|
|
Storage volume of aggregate hopper(m³)
|
4×13
|
4×13
|
4×13
|
4×13
|
|
|
Storage volume of finished product hopper(m³)
|
5
|
5
|
6
|
6
|
|
|
Gradation kinds
|
3-5
|
3-5
|
3-5
|
3-5
|
|
|
Gradation
Precision |
Aggregate(kg)
|
±2%
|
±2%
|
±2%
|
±2%
|
|
Cement(kg)
|
±1%
|
±1%
|
±1%
|
±1%
|
|
|
Water(kg)
|
±1-2%
|
±1-2%
|
±1-2%
|
±1-2%
|
|
|
Mixer rotate speed (r/min)
|
89
|
89
|
89
|
89
|
|
|
Total power(kw)
|
82/100
|
108
|
123
|
138
|
|
|
Total weight machine(kg)
|
28/32
|
33
|
35
|
38
|
|
