Widely Used Custom-Made JS750 Concrete Mixer Made In China

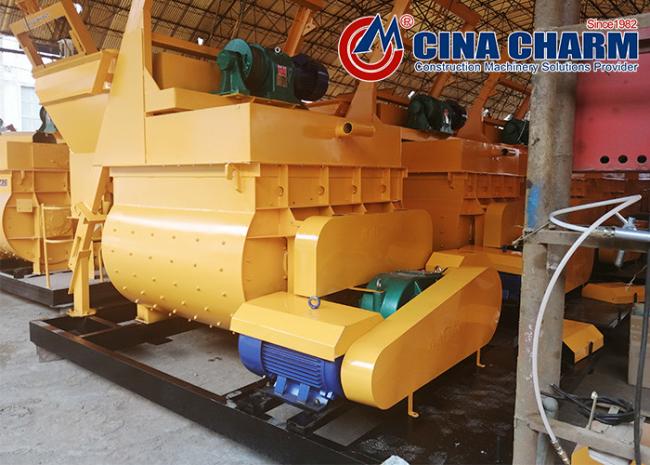

      JS750 concrete mixer is a kind of twin horizontal shaft forced mixer.This mixer has double superiority to do independent operation alone, or form a simple concrete batching plant together with PLD series aggregate batching machine. Also can be used as concrete batching plant's main host.It's a kind of widely used heigh efficiency mixing machine.Performance advantages:Reasonable structure design, novelted layout,easily for maintainence.Can be used together with tipper car,dumper truck or mixer truck. And also can be tailored as per special requirement to meet with client's demands.

Mixing system

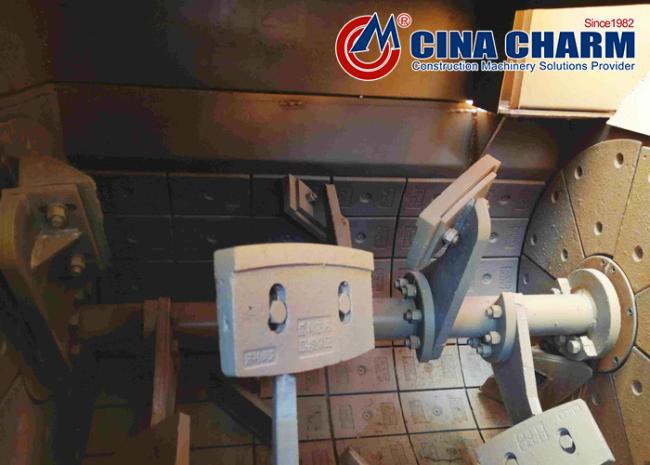

JS750 concrete mixer mixing system consists of motor, pulley, gearbox, gear, stirring device, mixing drum and other components. The main motor is connected to the secondary gear reduction box through a belt, and finally the two horizontally-connected stirring shafts are respectively rotated by the two pairs of open gears at the same speed.

Feeding system

When the JS750 concrete mixer is feeded, the mixture to be mixed is placed in the hopper, the feeding system is started, and the wire rope pulling hopper is climbed upward. When climbing to a certain height, the hopper enters the feeding rack, the door is automatically opened, and the material is discharged into the mixing drum through the funnel.

Discharging system

The discharging system is located at the bottom of the JS750 concrete mixer and is unloaded by a manual push rod. According to customer requirements, the mixer can be produced in the form of electric push rod discharge. The connection between the discharge door and the mixing drum is sealed with a sealing plate, and the position of the sealing plate can be adjusted to ensure the purpose of sealing.

Electric system

The electrical control system needs to control the main drive motor of the JS750 concrete mixer, the motor of the water supply system, the feeding and unloading of the motor. All electrical control components are located in the distribution box. The electrical components in the distribution box are installed on an iron plate, which is safe and reliable, and convenient for operation and maintenance.

      JS750 dual-axial mixing machine each discharge 0.75 square, also known as 0.75 forced mixer, productivity per hour for 35 m3 / h, usually used as HZS35 concrete mixing station mixing console, the machine has a single independent operation and with PLD concrete batching units into the double advantage of concrete mixing station, but also to provide matching the host station, because the selected configuration is different, the theory of productivity is an obvious gap, the user can according to the actual need to choose the appropriate configuration.
