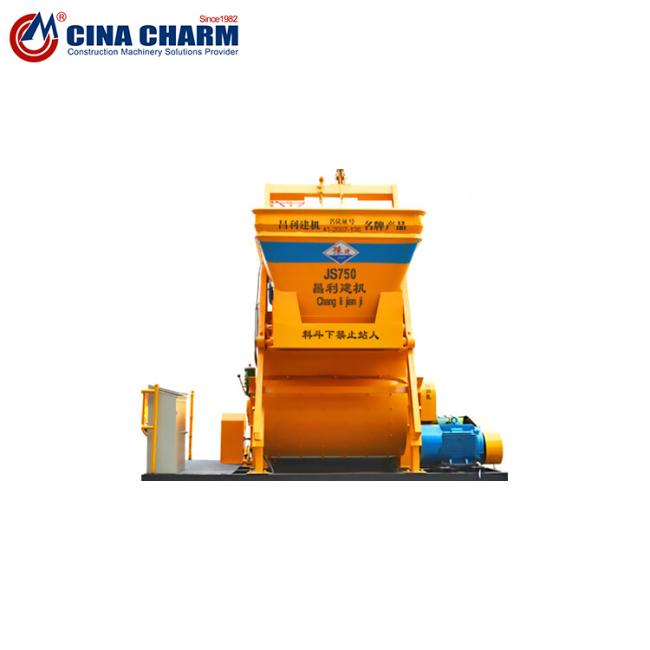

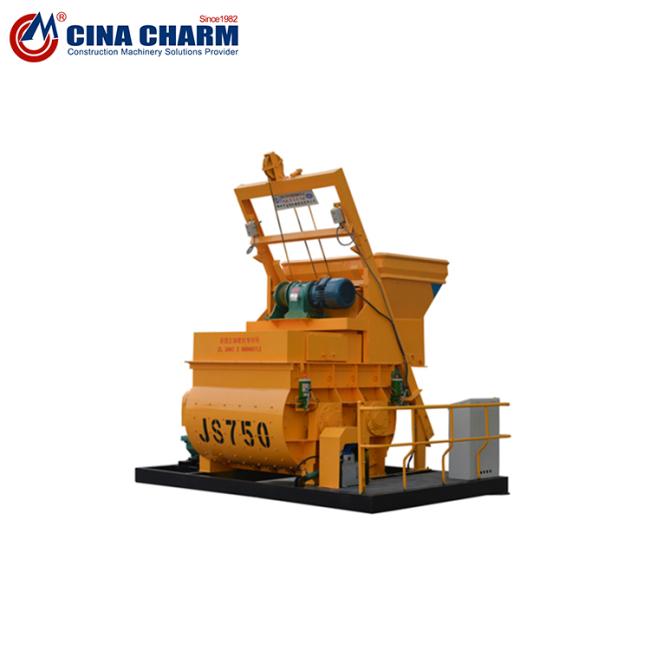

Hydraulic Pump 750L Js750 Concrete Mixer Machine
Hydraulic pump 750L JS750 concrete mixer machine
Product introduction of JS Series Cocnrete Mixer:
The JS series concrete mixer is a double-horizontal-shaft forced mixer, which has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting main machine for the mixing plant. It can mix dry hard concrete, plastic concrete, fluid concrete, light Aggregate concrete and various mortars. It is a high-efficiency machine with wide range of application.
The height of the outrigger part is designed as 1500 mm for JS500, 1600 mm for JS750, 4600 mm for JS1000 and JS1500, users can equip their own dump trucks, dump trucks, and mixer trucks, and they can also be modified according to user special requirements to meet user needs .
JS series double-shaft forced concrete mixer feature:
1. JS series double-shaft forced concrete mixer is based on years of experience in the industry, learning Italian and German advanced technology, and has a stable operation, low noise, good mixing quality, high production efficiency, simple operation and convenient maintenance.
2.Concrete mixer has the advantages of low energy consumption, long life and low cost of use. It can be used alone or as a supporting host for concrete batching plant.
3.It is suitable for roads, railways, bridges, water conservancy and hydropower, prefabricated fields, commercial concrete companies, etc.
Parameters of twn shaft concrete mixer:
| MODEL | JS750 | JS500 | JS1000 | JS1500 | JS2000 | JS3000 |
| Capacity | 35-50m³/h | 25-30m³/h | 50-60m³/h | 75-90m³/h | 90-120m³/h | 120-160m³/h |
| Discharge Volume | 750L | 500L | 1000L | 1500L | 2000L | 3000L |
| Charge Volume | 1200L | 800L | 1600L | 2400L | 3000L | 4800L |
| Mixing blade speed | 36r/min | 35.5r/min | 30r/min | 21r/min | 23.1r/min | 33.5r/min |
| Number of mixing blade | 6×2 | 6×2 | 6×2 | 2*7 | 2*7 | 7*2 |
| Mixer motor power | 30kw | 18.5kw | 37kw | 2*30kw | 74kW | 2*55KW |
| Hoist Electromotor power | 7.5kw | 5.5kw | 11kw | 18.5kw | 21kW | 27KW |
| Water pump power | 1.1kw | 0.75kw | 2.2kw | 3kw | 3kW | 3KW |
| Lifting speed of hopper | 18m/min | 18m/min | 19m/min | 24.58m/min | 24.58m/min | 24.58m/min |
| Max aggregate size | 60mm | 60mm | 60mm | 60mm | 60mm | 60mm |
| Discharge height | 2000mm | 1500mm | 3800mm | 3800mm | 3800mm | 3800mm |
| Overall weight: | 6980Kg | 4070Kg | 10800kg | 13000kg | 14000kg | 10100kg |
| Overall dimensional(L*W * H) | 3400*2280*2650mm | 2900*2150*2580mm | 3660*2260*2800mm | 10907*3490*12350mm |
FAQ
1.Are you original manufacturer?
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
