Full Hydraulic 4m3 Self Loading Concrete Mixer Truck
Price:
$26,500.0-$27,500.00/Set
MOQ:
1
Delivery Time:
5-8 work days
Brand:
CINA CHARM
Product Description

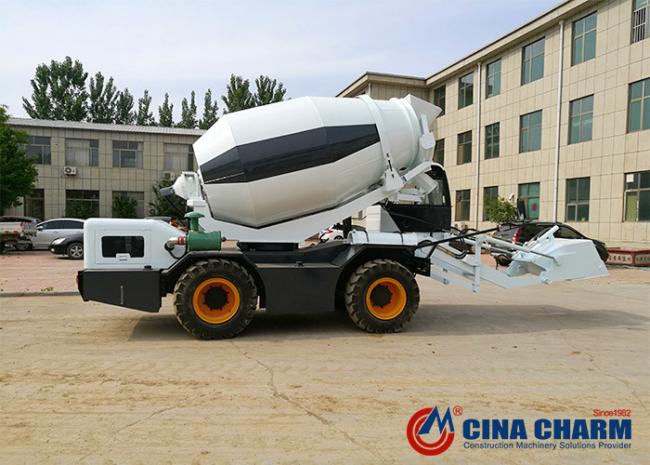

Self Loading Concrete Mixer Truck 4 m3
Product Description
Self loading concrete mixer truck is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine. the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.
Main Technical Parameters
| Name | Item | Specification | |||
| Whole vehicle | Net | 7300kg | |||
| Transmission | Full Hydraulic | ||||
| 4 WD | |||||
| Brake | Gas cap oil Brake | ||||
| Chassis | Off-road | ||||
| Tread | 1900mm | ||||
| Wheelbase | 2300mm | ||||
| Loader bucket | Capacity | 0.6m3 | |||
| Control | Hydraulic | ||||
| Tilt angle | 30% | ||||
| Speed | High | 0-25KM/H | |||
| Low | 0-9KM/H | ||||
| Mini turning radius | 5.5M/R | ||||
| Tyre model | 16/70-20 | ||||
| Engine | Type | Yuchai | YCD4P22T-130 | ||
| Rated Power/RPM | 95kw/2200RPM | ||||
| Max.Torque/RPM | 460N.M/1400RPM | ||||
| Cylinder | 4 | ||||
| Starter | Electric | ||||
| Cooling type | Water cooling | ||||
| Maxing Drum | Drum capacity | 4M3 | |||
| Bank Angle | 16 ° | ||||
| Rotation Angle | 19-21R/min | ||||
| Chute | Swing Angle | ≥60° | |||
| Angle control | Hydraulic | ||||
| Size | Long 92cm | ||||
| Short 92cm | |||||
| Drum | Swing angle | 270° | |||
| Loader | Weighing model | Computer control | |||
| Concrete Standard | C15.C20.C25 C30 | ||||
| Accuracy | Cement | ≤±2%/time | |||
| Relative Error | ≤±3%/time | ||||
| Water | ≤±1%/time | ||||
| Additive | ≤±1%/time | ||||
| Admixture | ≤±2%/time | ||||
| Loader control | Hydraulic 4 way stick | ||||
| Over size | 7700×2500×3450mm | ||||
Port
Main port in China
Lead Time
| Quantity(sets) | 1-1 | >1 |
| Est.Time(days) | 7 | To be negotiated |
