HZS180 Stationary Ready Mixed Concrete Mixing Plant In Egypt
HZS180 low price stationary ready mixed concrete mixing plants in egypt

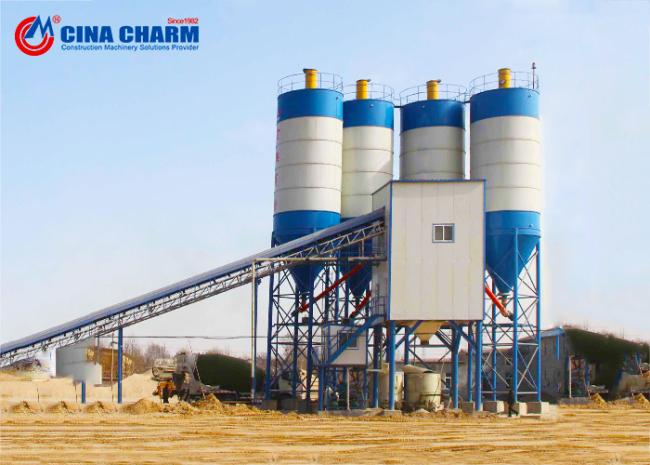

HZS180 concrete mixing plant is an advanced design concept of Zhengzhou Fangtai. In the design, the convenience of appearance and maintenance is fully considered. It is a forced mixing plant with novel structure and beautiful appearance. High production efficiency (JS3000 host, usually 180 m3 / h). The station has the advantages of less investment, strong mobility, floor area, high production efficiency and strong reliability.
HZS180 mixing station is mainly composed of material supply system, material metering system, mixing system and control system.
At the same time, it has the functions of microcomputer control, electronic scale measurement, dynamic screen display, proportioning storage, automatic drop compensation, automatic printing and so on. It can realize manual, semi-automatic and automatic operation. The station can produce a variety of concrete, such as plastic, dry and hard. It is widely used in large and medium-sized building construction, road and bridge engineering and prefabrication plants producing high-quality concrete products. It is the choice of equipment for large-scale building engineering, road and bridge engineering and commercial concrete production units.
The material supply system of HZS180 concrete mixing plant can realize the measurement of four kinds of aggregate, and can configure 1-6 kinds of powder materials and single measurement. There is a single metering system for water and admixtures. In the concrete mixing host, JS3000 host of Zhuhai segoma is selected to improve the mixing performance of the product. The station adopts special intelligent lubrication system, which is optimized. The hydraulic discharge door can realize sectional feeding to prevent blocking during discharging. The discharge door has automatic and manual selection, and can be opened manually in case of power failure and other emergency faults.
HZS180 low price stationary ready mixed concrete mixing plants in egypt

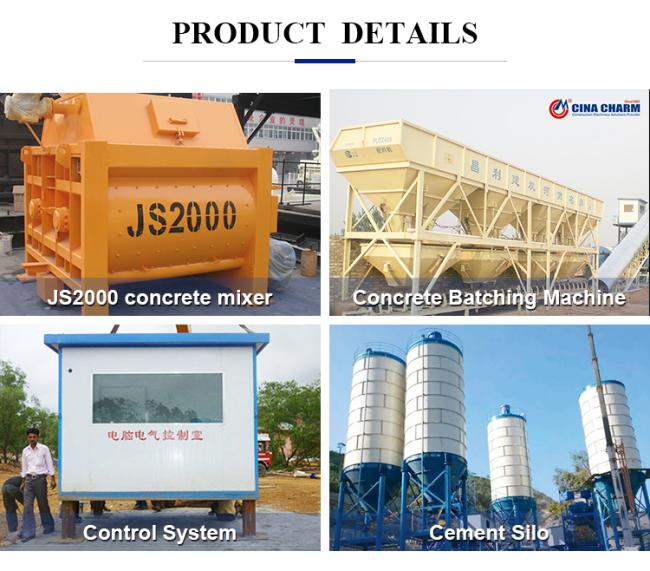

The new mixer is composed of mixing cylinder, mixing device, transmission device, hydraulic pump station, automatic lubrication device, belt cover and other parts. The aggregate feeding system adopts large inclination belt conveyor, which is compact in structure and reliable in performance. Besides, there are pedestrian maintenance walkways on both sides of the frame, which is convenient for maintenance. The shaft end seal uses automatic lubrication system, and the lubrication system uses imported components.
HZS180 low price stationary ready mixed concrete mixing plants in egypt
The pld4800 concrete batching machine used in the mixing plant is a special automatic batching equipment. The machine is composed of feeding mechanism, weighing system and electric control system. Its characteristics are that the feeding mechanism is arranged in a "one" shape, the arc gate is used for feeding, and the weighing mode adopts the sensor to weigh each material, so the measurement is accurate. The aggregate conveying system of the mixing station adopts 18 degree flat belt, which has the advantage of low failure rate and is an ideal aggregate conveying mode.
| Model | HZS90 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 90 | 120 | 150 | 180 |
| Charging Model | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 198.06 | 210 | 230 | 288 |
