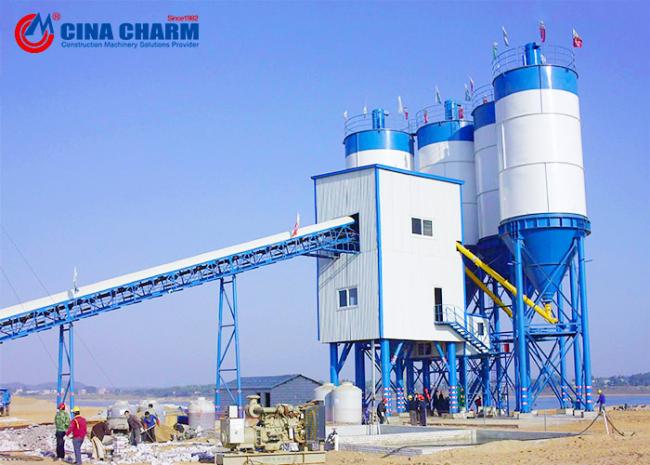

Hzs240 240m3/h Stationary Concrete Mixing Plant High Capacity
hzs240 best quality high capacity stationary concrete mixing plant manufacturer in China
Hzs240 concrete mixing plant mainly consists of the following five parts:
(1) Agitator
1. The mixer of hzs240 concrete mixing plant uses three sealed shaft end sealing device to effectively solve the slurry leakage;
2. The blade, lining plate and mixing arm are all made of alloy wear-resistant materials, and the service life is over the national standard;
3. The mixing drum adopts the design method of large space and low volume ratio, and the spacious space makes the mixing more energy-saving;
(2) Batching station
1. Modular installation structure, easy and fast installation, manufacture and transportation;
2. The method of vertical measurement has high precision of coarse and fine ingredients;
3. The warehouse type and steel structure can be selected according to local conditions according to the needs of customers;
4. The mixing building uses the upper type high capacity wear-resistant structure;
(3) Aggregate belt conveyor
1. The frame is of high section truss standard section type, with good rigidity, convenient manufacture, transportation and installation;
2. Closed conveying mode, dust-proof and material falling, good environmental protection;
3. The two-way walking platform and safety handrail are convenient for maintenance and maintenance;
4. Nylon inner core belt, long service life;
5. Suspension roller assembly, automatic deviation correction, low noise;
(4) Metering system
1. The metering elements of Fangtai hzs240 concrete mixing station are all famous international brands, which have high reliability and anti-interference;
2. The raw materials are batched by coarse and fine ingredients, and the discharging door is shaken and unloaded, and the measurement accuracy is high;
3. Preset two metering control schemes at will;
(5) Electrical control system
1. Hzs240 concrete mixing plant adopts industrial control machine + industrial control card control mode, which is open design, and supports networking function;
2. The interface is friendly, the operation is flexible, the function is strong, the safety is high efficiency;
3. Manual ingredients can be recorded;
4. Scientific production logic organization, the same production based on the low operating cost;
5. It can provide users with online timely detection, network management personalized control and management system.
| Model | HZS90 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 90 | 120 | 150 | 180 |
| Charging Model | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 198.06 | 210 | 230 | 288 |
hzs240 best quality high capacity stationary concrete mixing plant manufacturer in China common problem
1. centralized control price of concrete mixing station?
A: the centralized control system is used in the mixing station. The specific price has direct relationship with the number of scales to be measured. The more the scale is, the higher the price is, for example, the centralized control of 5-pole scale is generally 20000 yuan.
2. the standard fully automatic control price of concrete mixing station?
A: automatic control system is commonly used in large and medium-sized concrete mixing plants. Compared with centralized control system, the higher the price cost, the larger the model of mixing station, the higher the requirements for automation, and the cost varies from tens of thousands to 100000
