HZS90 90m3/Hour Js1500 Concrete Mixer Dry Concrete Mixing Plant
ChangLi HZS90 90m3hour js1500 concrete mixer dry concrete mixing plant
90 concrete mixing plant has the following advantages:
Good mixing quality
High production efficiency
Low noise
The use site is small
Less equipment used
The equipment is easy to maintain
Environmental protection and energy saving
Advanced technology and good product quality
1. Mixing system
90 concrete mixing plant mixing system is composed of motor, belt conveyor, reducer, mixing tank, mixing device, transmission system, oil supply system, etc. JS1500 double horizontal shaft forced mixer is used in the main mixer, which is suitable for all kinds of concrete with aggregate size less than or equal to 100 mm.
2. Metering system

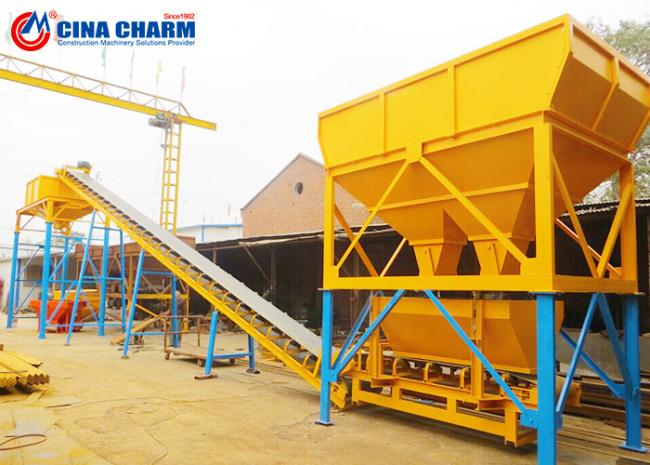

Fangtai 90 concrete mixing plant adopts the weighing system of pl2400 concrete batching machine, which is composed of storage hopper, weighing hopper and transportation mechanism. The weighing system of powder, water and additive is composed of weighing bucket and sensor, and the weighing control is completed by the control system
3. Feeding system

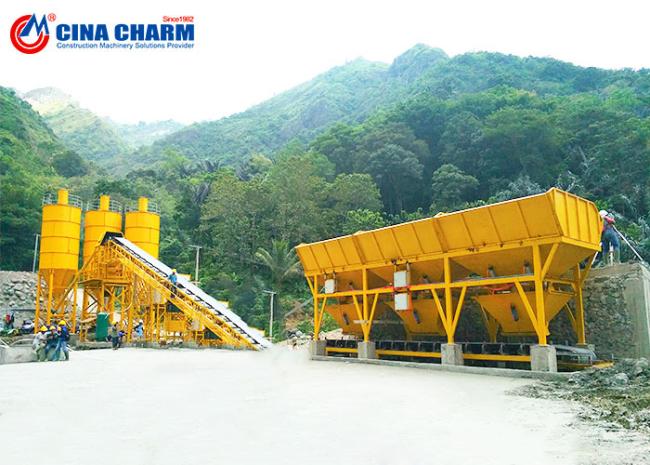

Aggregate supply system. The aggregate supply system of 90 concrete mixing plant is composed of the feeding mechanism and weighing system of pl2400 concrete batching machine, which can be equipped with four kinds of aggregates.
Powder supply system. This part is composed of cement silo and cement screw conveyor. The cement is directly transported from the cement silo to the cement weighing hopper for measurement by screw conveyor.
4. Electrical control system
The electrical control system of 90 concrete mixing plant is mainly composed of strong current control with console and AC contactor as the core. The whole system is installed in the control room, which can complete the automatic and semi-automatic control of the whole process of batching, lifting, mixing and discharging production.
5. Air system
The air source is supplied by w-1.0/10 type air compressor, and the air after filtering water and refueling enters into each branch through the sub air bag. The gas path is divided into aggregate feeding, mixer discharging, cement discharging, arch breaking of cement silo, admixture mixing and other parts.
| Model | HZS90 | HZS120 | HZS150 |
| Discharging Capacity (L) | 1500 | 2000 | 2500 |
| Charging Capacity(L) | 2400 | 3200 | 4000 |
| Maximum Productivity(m³/h) | 90 | 120 | 150 |
| Charging Model | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 4.2 | 3.8~4.5 | 4.5 |
| Number of Species of Aggregate | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤80mm | ≤120mm | ≤150mm |
| Cement/Powder Silo Capacity(set) | 3×100T | 4×100T or 200T | 4×200T |
| Mixing Cycle Time(s) | 60 | 60 | 30 |
| Total Installed Capacity(kw) | 198.06 | 210 | 230 |
