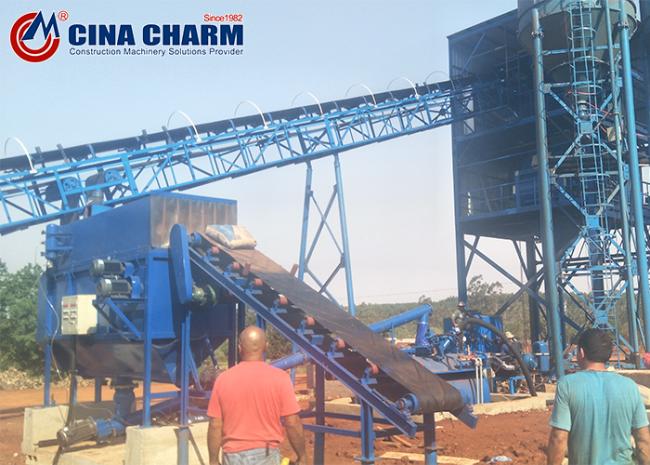

Pld3200 Concrete Mixing Plant Large Capacity 120CBM Ready Mix Concrete Plant
concrete batching machine Pld3200 Large capacity 120m3 ready mix concrete plant for sale
| Model | HZS90 | HZS120 | HZS150 |
| Discharging Capacity (L) | 1500 | 2000 | 2500 |
| Charging Capacity(L) | 2400 | 3200 | 4000 |
| Maximum Productivity(m³/h) | 90 | 120 | 150 |
| Charging Model | belt conveyor | belt conveyor | belt conveyor |
| Standard Discharging Height(m) | 4.2 | 3.8~4.5 | 4.5 |
| Number of Species of Aggregate | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤80mm | ≤120mm | ≤150mm |
| Cement/Powder Silo Capacity(set) | 3×100T | 4×100T or 200T | 4×200T |
| Mixing Cycle Time(s) | 60 | 60 | 30 |
| Total Installed Capacity(kw) | 198.06 | 210 | 230 |

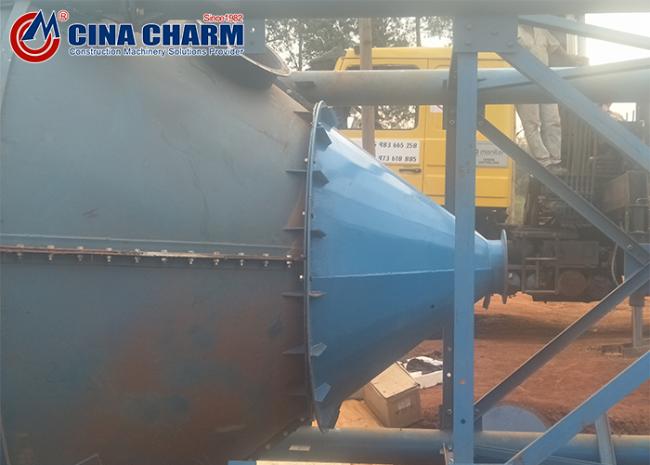

Cement silo of Large capacity 120m3 ready mix concrete plant for sale
1. Equipped with safety relief protection device;
2. The material level indicating device is set on the top of the bin;
3. Dust removal device is set on the top.
Screw conveyor of Large capacity 120m3 ready mix concrete plant for sale
1. The blade with variable pitch design has high conveying efficiency;
2. Special design for powder conveying;
3. Maintenance free design of intermediate support.
Weighing device of Large capacity 120m3 ready mix concrete plant for sale
Toledo sensor ensures the weighing accuracy; Large diameter butterfly valve, high feeding efficiency; Sensor unbalance compensation function.
control room
1. Set up the control room structure;
2. Luxury decoration with air conditioning;
3. Aluminum alloy doors and windows are set around to facilitate observation and operation.
Significance of main interface parameters of HZS120 concrete batching plant
Large capacity 120m3 ready mix concrete plant is inseparable from the automatic control system, users can carry out a series of operations in the main monitoring interface, which is very convenient, so what is the significance of the main monitoring interface parameters of HZS120 concrete mixing station?
There are four parameters displayed in the lower left corner of the main interface of HZS120 concrete mixing station: mix number, delivery order number, quantity of each plate and number of plates per vehicle. These are several data related to the mixing of the vehicle in the task list. When the production data is transmitted from the upper computer, these data will change accordingly, so as to judge whether the data transmission is successful.
In the main monitoring interface, click the "debug" button in the top line to open the debug interface. The upper part of the debugging interface is about the parameters of the batching scale, and the lower part of the debugging interface is about the parameters of the aggregate batching scale
The opening time of aggregate fine weighing pulse refers to the opening time of aggregate flash in fine weighing stage, unit: Ms.
Discharging sequence adjustment refers to the discharging sequence of aggregate weighing hopper after aggregate batching.
Discharging interval adjustment refers to the time interval of discharging the aggregate scale bucket in turn. For example, 9 seconds between aggregate 1 and aggregate 2 means that aggregate 2 starts to unload 9 seconds after aggregate 1 starts to unload Large capacity 120m3 ready mix concrete plant .
Out of tolerance pause setting refers to setting the maximum allowable error of material batching process. When this value is exceeded, the program will pause and wait, and a prompt dialog box will pop up. When the operator clicks OK, the program will continue Large capacity 120m3 ready mix concrete plant .
If you buy our HZS120 concrete batching plant, we will provide a series of value-added services such as installation, debugging, training, Large capacity 120m3 ready mix concrete plant etc
