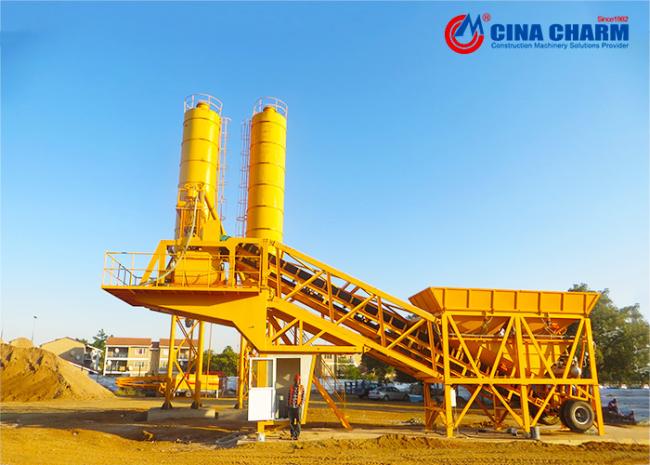

Ready Mix central machinery cement mixer Mini Mobile Concrete Batching Plant YHZS35
Small Ready Mix Central Mixer Machines Buy Concrete Mixers Mini Mobile Concrete Batching Plant YHZS35
Mobile Concrete Batching Plant Of Introduction:
YHZS35 mobile concerte batching plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.
YHZS35 Concrete Mixing Plant Main Features:
1) Fully computer auto control.
2) Chassis with wheels, can be easily hauled by trailer.
3) Second generation concrete mixer, working faster.
4) Automatic lubraction pump, save workers.
5) Customized out color according to requirement.
YHZS35 Concrete Mix Plant parameter:
| project | YHZS25 | YHZS35 | YHZS50 | YHZS60 | YHZS75 |
| Maximum productivity | 25m3/h | 35m3/h | 50m3/h | 60m3/h | 75m3/h |
| Mixer model | JS750 | JS750 | JS1000 | JS1000 | JS1500 |
| Batcher model | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 |
| Conveyer capacity of belt conveyer(t/h) | 200 | 200 | 400 | 400 | 400 |
| Drag speed(km/h) | 15 | 15 | 15 | 15 | 15 |
| Wheelbase (lateral) (mm) | 2800 | 3200 | 3400 | 3400 | 3400 |
| Turning radius (mm) | 11 | 15 | 15 | 15 | 15 |
| Total power (kW) | 35 | 38 | 60 | 85 | 90 |
| Unloading height (m) | 4 | 4 | 4 | 4 | 4 |
FAQ
Question I.What is the function of the concrete batch plant?
Answer: It is used to produce all kinds of concrete to meet the building work of buildings,bridges,dock,airport, railway,etc
Question II. How to choose the suitable model of batch plant?
Answer:Just tell us the capacity (m3/h,t/h)of concrete you want to produce concrete per hour or per month.
Question III.What paymet terms you use?
Answer:Usually the world most common used T/T,L/C ,etc
