Small Mini Portable Mobile Rmc Plant YHZS35 mobile ready mix concrete plant
Small Mini Portable Mobile Ready Mix Concrete Batching Plant YHZS35

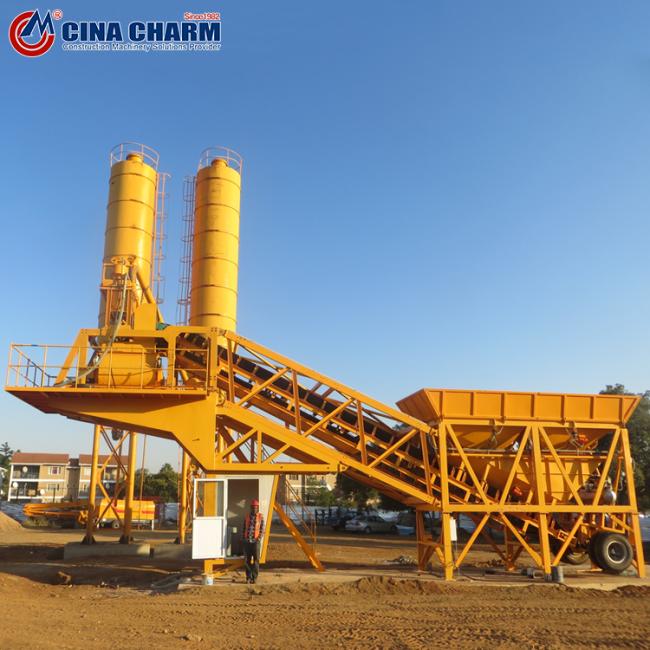

Mobile Concrete Batching Plant Of Introduction:
Hauling type mobile concrete mix plant adopts the semi-pulling design. With running system and standard traction pin, YHZS series hauling type mobile concrete mix plant can be dragged by a tractor, which enables convenient and quick movement and installation without foundation and debugging. It takes only one day from installation to operation.
The Mobile concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.
YHZS35 Concrete Mixing Plant Main Features:
1) Fully computer auto control.
2) Shassis with wheels, can be easily hauled by trailer.
3) Second generation concrete mixer, working faster.
4) Automatic lubraction pump, save workers.
5) Customized out color according to requirement.
YHZS35 Concrete Mix Plant parameter:
| project | YHZS25 | YHZS35 | YHZS50 | YHZS60 | YHZS75 |
| Maximum productivity | 25m3/h | 35m3/h | 50m3/h | 60m3/h | 75m3/h |
| Mixer model | JS750 | JS750 | JS1000 | JS1000 | JS1500 |
| Batcher model | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 |
| Conveyer capacity of belt conveyer(t/h) | 200 | 200 | 400 | 400 | 400 |
| Drag speed(km/h) | 15 | 15 | 15 | 15 | 15 |
| Wheelbase (lateral) (mm) | 2800 | 3200 | 3400 | 3400 | 3400 |
| Turning radius (mm) | 11 | 15 | 15 | 15 | 15 |
| Total power (kW) | 35 | 38 | 60 | 85 | 90 |
| Unloading height (m) | 4 | 4 | 4 | 4 | 4 |
Mobile Concrete Batching Plant Of Details:
FAQ
Question I.What is the function of the concrete batch plant?
Answer: It is used to produce all kinds of concrete to meet the building work of buildings,bridges,dock,airport, railway,etc
Question II. How to choose the suitable model of batch plant?
Answer:Just tell us the capacity (m3/h,t/h)of concrete you want to produce concrete per hour or per month.
Question III.What paymet terms you use?
Answer:Usually the world most common used T/T,L/C ,etc
