Electric Engine Working Single Shaft JDC350 Concrete Mixture Machine
Electric engine single shaft JDC350 concrete mixture machine
Product description of JDC350 concrete mixture machine:
1. JDC350 concrete mixture machine is the more ideal and advanced machinery and equipment for mixing semi-dry and hard plastic concrete, light aggregate concrete and various kinds of sandstone at home and abroad.
2. This machine adopts new type of mixing arm lifting linkage device, which further improves the convenience of machine maintenance.
3. High mixing quality, high efficiency, low power consumption,simple operation and low noise.
4. JDC350 concrete mixer can mix various plastic concrete, dry hard concrete, light aggregate concrete and various mortar admixtures.
5. The portable concrete mixer machine system adopts cylindrical gear transmission with high transmission reliability. The feeding mechanism adopts the lifting motor with high safety.
6. Single-shaft concrete mixture machine can work with dosing machine to form a small mixing station.
7. JDC concrete mixture machine is the ideal choice for various construction sites, small and medium-sized construction projects and precast concrete plants.
Advantages of JDC350 concrete mixture machine:
- Fast and clean discharge of finished products
- Power driven discharge
- High mixing quality; easy to maintain
- Long service life of coating and blades
- Easy to control, easy to move
- Wide application, high productivity, low power consumption, low noise, reasonable structure, easy operation, etc.
Features of JDC350 concrete mixture machine:
- Equipped with single shaft end seal protection device and wind pressure seal protection device to effectively and absolutely avoid leakage.
- Mixer monitoring system to monitor the operating status of the gearbox, discharge pump and lubrication pump.
- Equipped with special motor lubricating oil pump, four independent pump cores supply oil directly to the four axial heads respectively, without using bypass valves.
- Multi-pipe and multi-way water injection system to ensure uniform water injection.
- Designed with large weight and stable operation.
The parameters of concrete mixer:
| Item | Unit | JDC350 |
| Charging Capacity | L | 560 |
| Discharging Capacity | L | 350 |
| Min. Productivity | m3/h | 17.5 |
| Max. Aggregate Size | MM | 60 |
| Mixing Blade | 1*6 | |
| Mixing Motor Speed | RPM | 27.6 |
| Mixing Motor Power | KW | 15 |
| Lifting Motor Power | KW | 4.5 |
| Water Pump Power | KW | 0.55 |

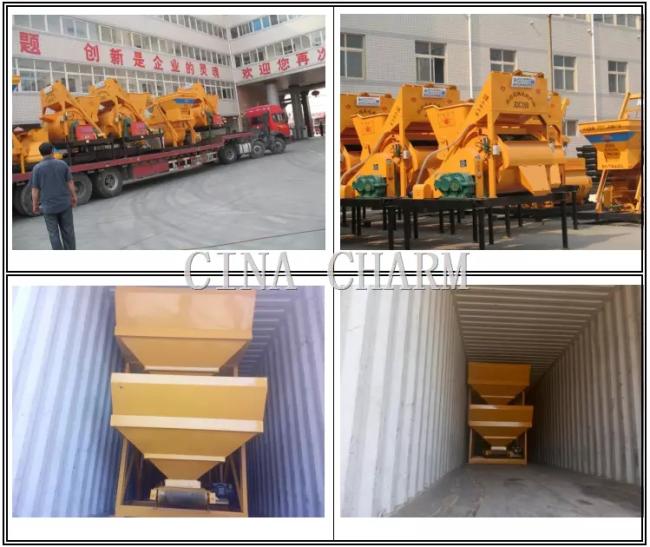

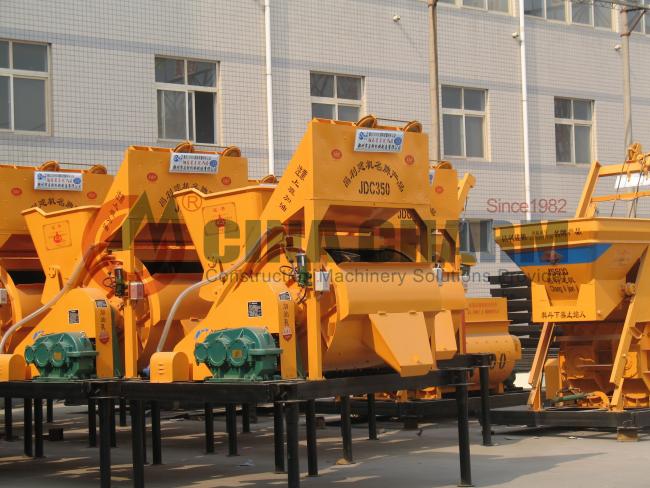

More photos of our JDC350 concrete mixture machine:
