Mini Concrete Mixer Pump JBS40 40m3/H With Electric Motor Portable Concrete Pumps
New mini concrete mixer pump JBS40 40m3/h with electric motor portable concrete pumps

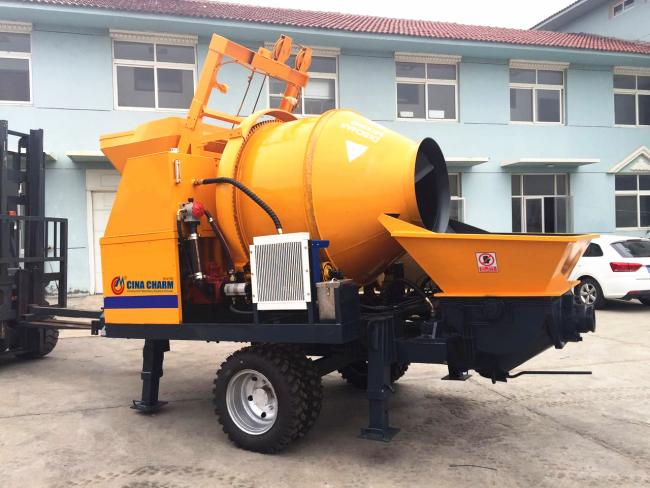

Introduction of concrete mixer machine with pump JBS40:
Bucket type concrete mixer pump is a patented product of our company in 2008. It combines concrete mixer and concrete mixer pump to realize the integration of pump station. It is most suitable for residential and commercial buildings with less than 30 floors, small bridges, water conservancy, electric power, communication and other projects with scattered sites and requiring on-site mixing.
Cinacharm's new generation concrete mixer pump truck adopts the latest differential pressure sensing control technology for special design and construction to maintain reliability, simplicity and efficiency.
Features of concrete mixer machine with pump JBS40:
1. The concrete mixer and pump truck are combined into one, easy to move, powerful and flexible.
2. The electric control cabinet is controlled by PLC program, stable and reliable, with long service life.
3. The feeding, mixing, turning and pumping are controlled by hydraulic power, with a high degree of automation and labor saving.
4.The water pump is controlled by electromagnetic clutch and time relay, and the water is automatically added according to the water supply timer.
5. Manual lubrication system, reliable oil saving;Independent water cooling system, efficient.
6. Feeding, water inlet, mixing mixer and pumping are controlled by the electric motor through the hydraulic and PLC system, with a high degree of automation and no power required.
7. A fast machine has a unique dual-purpose function. The agitator and pump can be used separately or in fast combination.
Parameters of concrete mixer machine with pump JBS40:
| Item | Unit | JBS40 |
| Max Theoretical Conveying Capacity | m3/h | 40 |
| Max Exit Pressure | Mpa | 10 |
| Form of distribution valve | S tube valve | |
| Concrete cylinder bore*stroke | mm | φ160*1200 |
| Oil tank valve | L | 250 |
| Exit diameter | mm | φ150 |

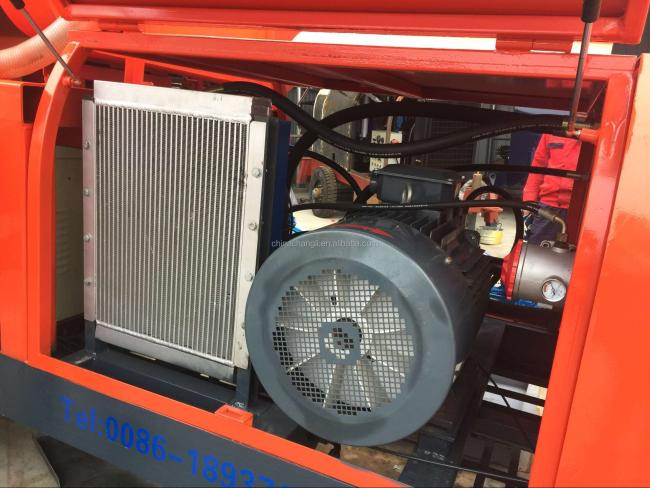

| Pumping motor power | kw | 45 |
| Max aggregate size | mm | 30/40 |
| Drum diameter | mm | 1440 |
Our services:
1. Installation, commissioning, operator training.
2.Maintenance.
A: If you have any questions about the concrete power plant, please feel free to call us.
B: If necessary, we will send engineers to your site to solve problems.
3. Provision of commercial invoices, packing lists, certificates of origin and other documents required for customs clearance.
4. Spare parts supply.
FAQ:
Q: What is the function of concrete mixing plant?
A: What is the function of concrete mixing plant? It is used to produce all kinds of concrete to meet the construction of buildings, bridges, docks, airports, railways, etc.
Q: How to select the appropriate mixing plant model?
A: Just tell us the concrete production capacity (m3 / h, t / h) you want to produce hourly or monthly.
