HBTS40 Trailer Concrete Pump 35m3/H Trailer Mounted Concrete Pump
Trailer concrete pump HBTS40 35m3/h trailer mounted concrete pump
Product introduction of trailer concrete pump:
Concrete pump, also known as concrete pump, consists of pump body and delivery pipe. It is a machine that takes advantage of pressure to continuously transport concrete through pipes, mainly used in construction, bridge construction, tunnels, etc.
The small concrete pump model is smaller, lighter and easier to move than the large concrete pump model.

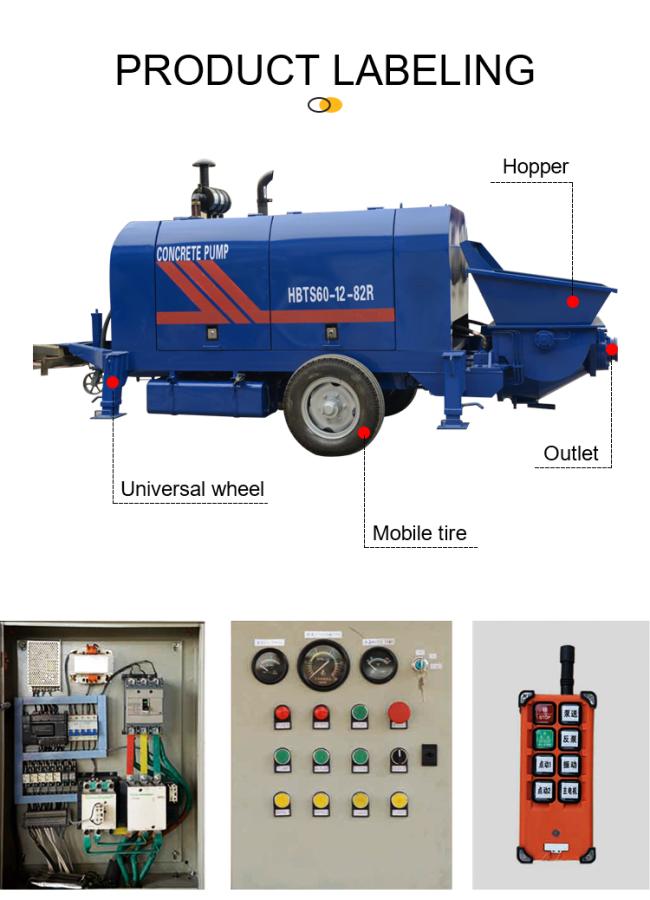

Main features of trailer concrete pump:
1. The distribution valve system is S-shaped valve, which ensures the uninterrupted transportation of fine-grained concrete.
2. The use of hard wear-resistant alloy materials, glass plates and cutting rings have a long service life
3. High feed pressure for conveying concrete fine grained mortar is longer and higher than that of ball valve pump.
4. Hydraulic oil air-cooling system with good performance and convenience.
5. manual centralized lubrication system for longer life of power transmission parts.
6. High quality wear cylinder increases the service life of concrete pump and reduces maintenance cost;.
7. Repeated pumping function for smooth pumping.
8. Equipped with wired remote control, easy to operate.
Parameters of trailer concrete pump:
|
Items
|
HBTS40-13-45
|
|
Max theo. Concrete output (L./H.)
|
40/23 m3/h
|
|
Max.concrete pumping pressure (H. /L.)
|
13/6 MPa
|
|
Distribution valve type
|
S Valve
|
|
Outlet diameter
|
Ф125mm
|
|
Electrical engineering power
|
45kW
|
|
Rotate speed
|
1480r/min
|
|
Pumping system pressure
|
28MPa
|
|
Mixing system pressure
|
8MPa
|
|
Capacity of oil tank
|
370L
|
|
The biggest transportation is away from vertically (/Level)
|
180/600m
|
|
Max. aggregate diameter
|
30mm
|
|
Inside diameter of delivering pipe
|
Ф125mm
|
|
Electrical engineering power
|
45kW
|
|
Capacity of oil tank
|
370L
|
|
Dimensions:length×width×height
|
4600×1850×1770
|
|
Total weight
|
3200kg
|
FAQ
Q. What is the function of concrete mixing plant?
A. It is used to produce various types of concrete to meet the construction requirements of buildings, bridges, docks, airports, railroads, etc.
QII. How to choose the right concrete mixer model?
A. Just tell us the performance of concrete you want to produce per hour or per month (m3/h, t/h).
QII. What payment terms do you use?
A: The most commonly used in the world T/T,L/C,etc.
