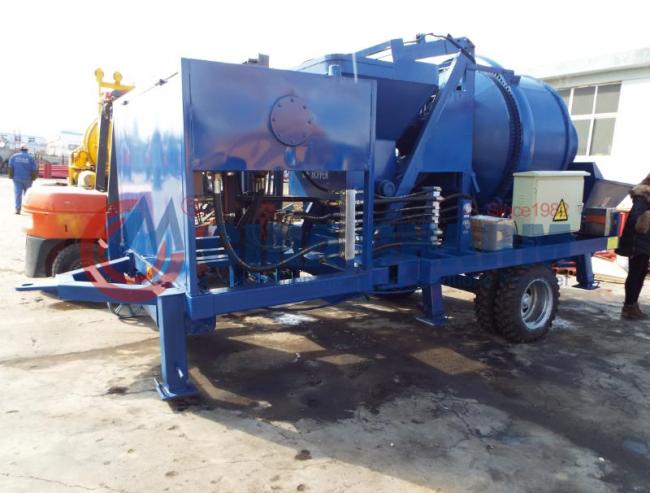

Diesel Concrete Pump JBS40 40m3/H Ready Mix Concrete Mixer Pump
Diesel concrete pump JBS40 40m3/h ready mix concrete mixer pump
Product introduction of diesel concrete pump:
The 40 m3/h concrete pump combines a concrete mixer and a concrete pump in one integrated pumping station. It is most suitable for houses and commercial buildings up to 10 stories, small bridges, reservoirs, power stations and communications, scattered places where in-situ mixing is required:.
1. It combines mixer and pump together, easy and flexible to move and highly mobile.
2. Only one operator can finish mixing and conveying, saving manpower.
3. This machine has two functions. The mixer and pump can work independently or be connected quickly without disassembling the machine.
Main features of diesel concrete pump
1. Diesel engine
It can ensure the power supply of the concrete mixer pump.
2. Hydraulic pump
Hydraulic pump generates hydraulic pressures to deliver concrete to job site.
3. Hydraulic oil pipe
Plunger pump with constant power, to ensure the efficiency of main engine.
Extend component life, reduce the failure rate.
4. Electric control system
Intelligent power control system with PLC for safe, smooth and efficient operation.
Parameters of diesel concrete pump
| Items | Unit | JBS30 | JBS40 |
| Max Theoretical Conveying Capacity | m3/h | 30 | 40 |
| Max Exit Pressure | M pa | 10 | 11 |
| Concrete Cylinder bore * stroke | mm | 140*845 | 160*1200 |
| Main Oil Cylinder bore * stroke | mm | 80/55*845 | 100/70*1200 |
| Hydraulic Oil Tank Volume | L | 350 | 350 |
| Exit Diameter | mm | 100 | 150 |
| Conveying Pipe Inner Diameter | mm | 100 | 125 |
| Motor Power | KW | 47.55 | 55.75 |
| MaxAggregate Size | mm | 30 | 40 |
| Max Horizontal Conveying Distance | M | 500 | 600 |
| Max Vertical Conveying Distance | M | 120 | 150 |
| Mixer Model | JZC350 | JZC350 | |
| Input Volume | L | 560 | 560 |
| Output Volume | L | 350 | 350 |
| Drum Diameter | mm | 1440 | 1440 |
| Drum Rotary Speed(without load) | rpm | 18 | 18 |
| Outline Dimension (L*W*H) | mm | 4200*2300*2600 | 4200*2300*2600 |
Our company
CINACHARM -- Henan Xingchang Import & Export Trading Co., Ltd. is a construction equipment manufacturer and sales company with 37 years of experience.
Our main products include concrete mixers, concrete mixers, tower cranes, overhead cranes, concrete pumps, concrete mixers, self-unloading concrete mixers, etc.
Equipment we can supply.
As a leading construction machinery manufacturer, we can supply the following equipment.
a: concrete mixer
b: concrete mixing plant
c: concrete pump
d: dry mortar plant
