192x192mm P3 Module Indoor Advertising LED Display Screen
192*192mm Indoor Led Video Display 3mm Pixel Pitch P3 Module For Stage
Quick Detail:
1. W 64 × H 64 dots LED module pixels;
2. SMD2121 black LED type;
3. More than 1,920 Hz refresh rate;
4. 1.6 mm thickness PCB;
5. 111,111 dots/sq.m resolution;
6. W 192 × H 192 mm LED module size.
Feature:
1.Super Light and Thin
8KG/panel with a depth of 80mm which is half of the depth of traditional LED screen,saving space and transportation cost.
2.High Refresh Rate
Refresh Rate≥2000, offering impressive visual effect.
3.Noiseless
Free of fans and air conditions, excluding noise and reducing power consumption.
4.Fine and Smooth Picture
Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
5.Seamless Splicing
High conformity of picture without gap and information missing, realizing a seamless splicing display.
6.Fast Installation and Dismantlement.
| Product Name | Indoor P3 SMD HighDefintion Full Color 3IN1 |
| Pixel Pitch | 3 mm |
| Pixels Density | 111111 dots/m² |
| pixel configuratin | 1R1G1B |
| pixel resolution | 64dots * 64dots |
| module size | 192*192mm |
| LED Lamp | SMD1921 |
| Drive type | Constant current |
| scan mode | 1/16scan |
| port type | HUB75 |
| Brightness of white balance | 1,300 cd/m² |
| Cabinet size | 576*576mm |
| Pixel per cabinet | 128dot*128dot |
| Max.Power consumptiow (W/m²) | ≤1200W/㎡ |
| Working voltage | AC110V~220V ±10% |
| Best viewing distance | >4m |

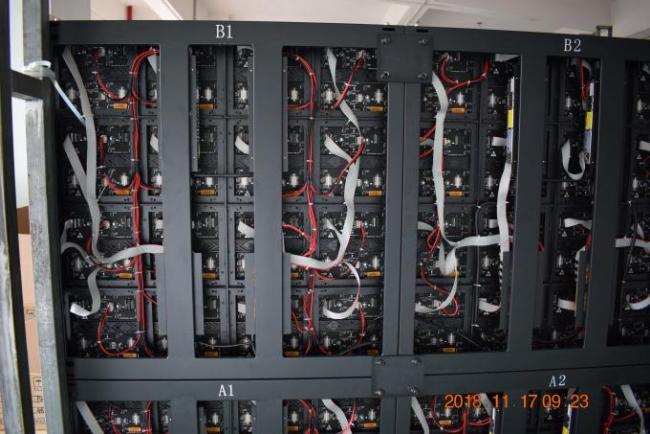

P3 Indoor LED Video Display Cabinet Back View:

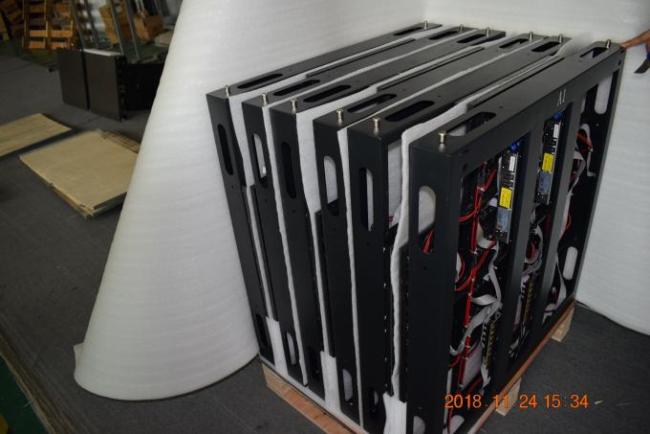

P3 Indoor LED Video Display Package:
