4000nit P10.4mm IP23 Transparent LED Window Display
P7.81mm / 10.4mm COB outdoor transparent LED display high brightness
Features
1. Made with high resolution and high quality led lamps,good display vision
2. Super thin cabinets, less than 51mm thickness, and light weight,only with 6kgs per panel,it is portable and easy to move
3.With transparent glass cover for good vision and protection,can be used as a windon screen directly
4. Exquisite and tasteful appearance due to structural wire layout
5. High refresh rate up 1920Hz,and high brightness up to 5500nits,suit for indoor and outdoor use
6. Packed with wooden case or flight case, convenient to be collected and move
Technical Specification
| Model | P3.91 | P3.91 | P7.81 | P7.81 | P10.4 |
| Pixel pitch | 3.91-7.81 | 3.91-7.82 | 7.81 | 7.81-15.625 | 10.4 |
| Lamp | Indoor SMD2121 | Outdoor SMD1921 | Outdoor SMD2525 | Outdoor SMD2525 | Outdoor SMD2525 |
| Pixel density | 32768 | 32768 | 16384 | 8192 | 9230 |
| Module size | 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available | ||||
| Cabinet material | Acryic Aluminum Steel | ||||
| weight | 15KG/㎡ | 15KG/㎡ | 14KG/㎡ | 14KG/㎡ | 14KG/㎡ |
| Transparency | 65% | 65% | 70% | 75% | 80% |
| Brightness | ≥1000nit | ≥4500nit | ≥4500nit | ≥4500nit | ≥4000nit |
| Refresh rate | ≥1920HZ | ||||
| Scan mode | 1/165 | 1/85 | 1/25 | 1/25 | 1/35 |
| Max power consumption | 400W/㎡ | 600W/㎡ | 600W/㎡ | 550W/㎡ | 550W/㎡ |
| Average power | 120W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| PCB | FR-4 four layers board,2.0mm thickness | ||||
| Driver IC | MBI5124,Hight Refresh Rate | ||||
| Installation | Hanging or Stacking | ||||
| Brightness level | 256 Level | ||||
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Application:

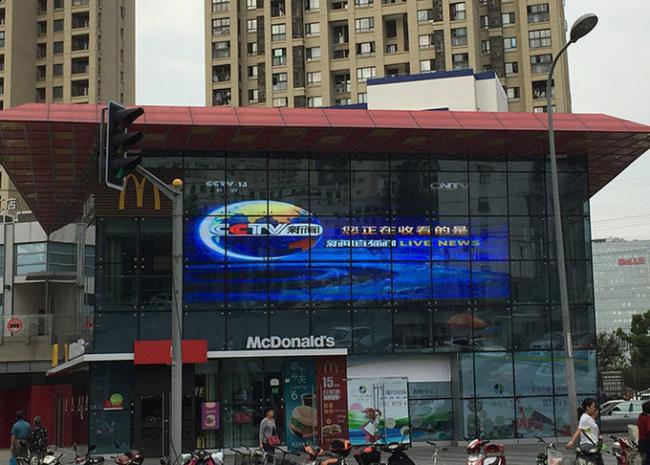

Ultra Thin 10mm Transparent Mesh Led Display has extremely high 80% transparency and able to achieve a brilliant visual effect. It is directly mounted on glass windows against the building for advertising and decoration, as well as rental application for stage. It's ultra thin and lightweight, making it the perfect choice for creative designing company to use on large-scale applications.
