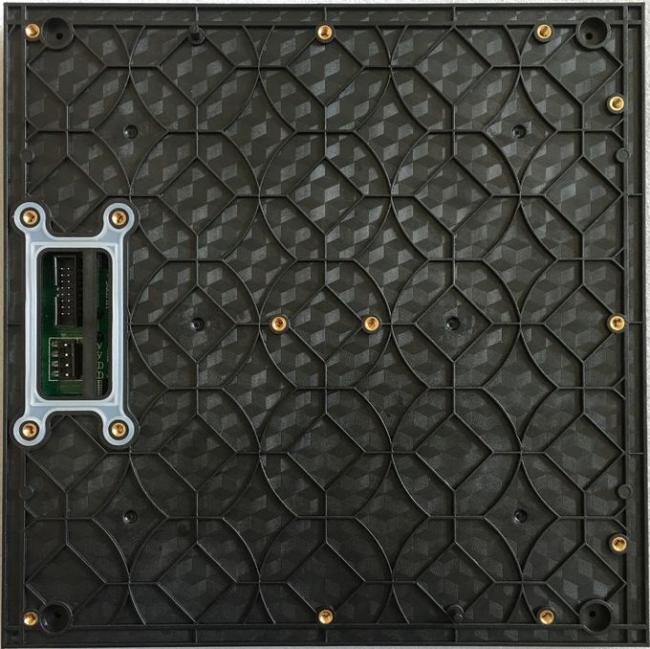

P4.81 SMD2727 64x64 lED advertising display screen board
Feature :
1. Intelligent monitoring module. Intelligent cabinet with intelligent monitoring (LCD display) showing the working status, smart monitoring the signal and recoard the spain life.
2. Perfect design of maintenance, New generation rental series supports both front and rear maintenance (both regular and power supply), saving time and space for customer
3. Use of Special heat dissipation structure make excellent heat dissipation.
4. Ultra-wide viewing angle give you the largest screen viewing area
5. Die-cast aluminum cabinet design light and easy to transport.
6. High refresh rate ,can reach 3840Hz to get better visual effect
7. High contrast and uniform color .
8. Fast install and disassemble, has 4-8 pairs fast locks, can install the two cabiet with 20sec easily.
9. Multi installation way, the led display can be hung or standing on the floor directly.
10. It is compatible with most of the control card in the market, like Novastar, Linsn, Colorlight,Xixun,Listen etc.
Specification:
| Pixel pitch | 4.81mm |
| Module size | 250mm*250mm |
| Resolution of module | 64*64 dots |
| Density of pixel | 43,264 dots/m2 |
| LED Size | SMD1921/SMD2727 |
| Pixel configuration | 1R1G1B |
| Best viewing distance | ≥4m |
| Horizontal viewing angle | 140º |
| Viewing angle | 140º |
| Driving method | 1/13 scan |
| Brightness | ≥5000cd/m2 |
| Refresh rate | 1920Hz~3840Hz |
| IP grade | IP65 |
| Max power consumption | 40W/pcs |
| Avg power consumption | 13.3W/pcs |
| Input voltage | DC5V |
| Storage temperature | —40°C~65°C |
| Working temperature | —30°C~55°C |
| MTBF | ≥10,000 hours |
| Life span | ≥100,000hours |
| Control system | Nova/Linsn/Colorlight/DBstar etc |
