SMD3535 Advertising 960x960mm LED Commercial Advertising Display Screen
P10mm Advertising Outdoor LED Screen LED Sign Panels CE / ROHS
Function and Technology Character:
1. Information source can be MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF and so on.
2. PC Operating system can be Microsoft Windows 98, 2000, XP and Vista, Windows7, Windows8
3. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
4. Brightness, contrast, saturation can be adjust by itself and manual.
5. Clear picture without flicker and distortion.
6. Multiform language editions, such as English, French, Germany, Greek, Russian and so on
7. Show everything with your PC does synchronously.
8. Super correcting technology for distortion.
9. One interface for sound signal and two for video signal at least.
10. Connected and controlled by PC via Lan and remote control.
Specifications :
| Product Name | Outdoor P10 SMD High Definition Full Color 3IN1 |
| Pixel Pitch | 10 mm |
| Pixels Density | 10000 dots/m² |
| pixel configuratin | 1R1G1B |
| pixel resolution | 32dots * 160dots |
| module size | 320*160mm |
| LED Lamp | SMD3535 |
| Drive type | Constant current |
| scan mode | 1/4scan |
| port type | HUB75 |
| Brightness of white balance | >6000 cd/m² |
| Cabinet size | 960*960mm |
| Pixel per cabinet | 96dot*96dot |
| Max.Power consumptiow (W/m²) | ≤1000W/㎡ |
| Working voltage | 220V ±15% |
| Best viewing distance | >10m |
Application and function:

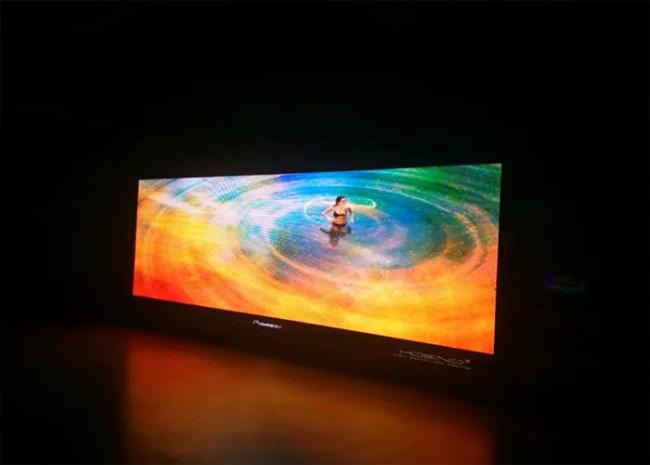

This led display screen is suitable for the television studio and digital stage background used, it can show virtual images and color effects. In the field of art stage designing, the product performs outstanding artistic charm with its unique feature of permeability, lightness and thinness. It is easy to install and remove, and has the price of the screen is much lower than the other video led display, so it is suitable for large area landscaping with vivid performance. It creates an impress array of audio and visual effects.
The applications of the background led display include:
1. High-grade entertainment
2. Large-scale song and dance soiree
3. Fashion conference

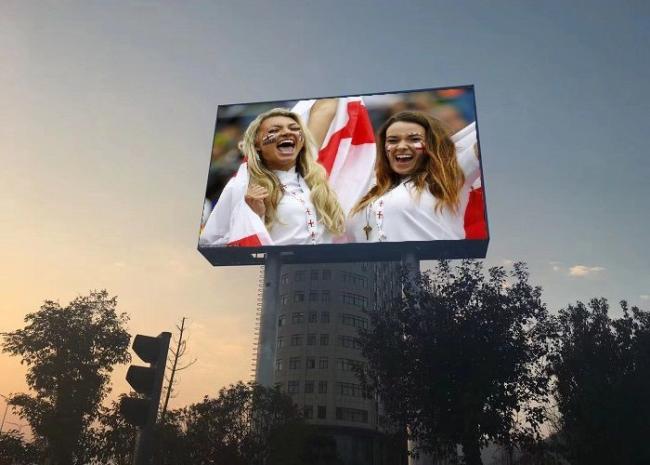

4. Outdoor advertising
5. Building wall decorations etc.
