P10mm 75% Transparency ROHS Outdoor Transparent LED Screen
P12 Outdoor Transparent LED Screen 1R1G1B SMD 3535 Curtain LED Display
Application:

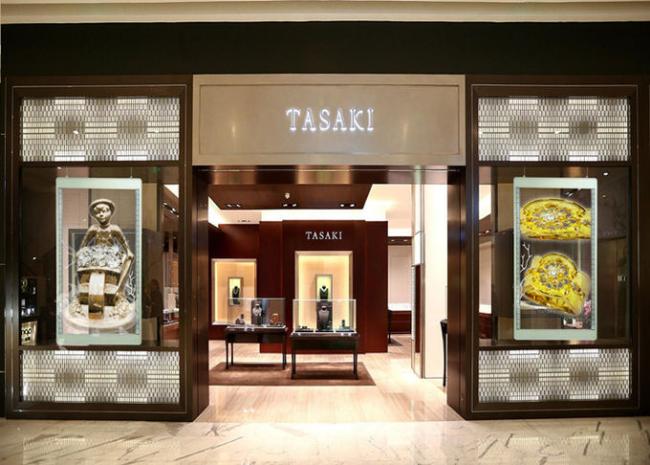

Ultra Thin 10mm Transparent Mesh Led Display has extremely high 80% transparency and able to achieve a brilliant visual effect. It is directly mounted on glass windows against the building for advertising and decoration, as well as rental application for stage. It's ultra thin and lightweight, making it the perfect choice for creative designing company to use on large-scale applications.
Description:
1. High brightness & Waterproof
Brightness reaches 6000nits, Waterproof IP65. It is good for indoor and outdoor use.
2. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 12.5 KG. It makes installation job and
delivery more comfortable and convenient. 100 mm thickness saves not only space for delivery but also
installation.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.
4. Fast Lock System & No Fan Design
Fast lock system makes installation job much easier: an average worker can finish 60 panels within one
hour. Natural cool system design and good heat dissipation.
5. Rental & Fixed Installation Use
With above features, it is very suitable for advertising and rental usage.
| Brightness | nits | 5500 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 8 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 640 | ||
| Cabinet depth | mm | 98 | ||
| Cabinet area | sq. m. | 0.61 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 3:2 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 10 | ||
| Pixel matrix per cabinet | 96x64 | |||
| Pixels per cabinet | 6144 | |||
| Lines per meter | 100 | |||
| Pixels per sq. meter | 10000 | |||
| LEDs per sq. meter | 10000 | |||
| Recommended minimum viewing distance | m | 10 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 650/220 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
