PH16 LED Message DIP546 Stadium Perimeter LED Display
Indoor / Outdoor Stadium Perimeter LED Display PH16 Led Message Light Box 1 Year Warranty
Quick Detail:
1. All is Epistar LED;
2. JXI5020 LED drive IC;
3. More than 7500 nits per square meter;
4. 1R1G1B composition;
5. 16 by 16 dots per LED module;
6. 256 by 256 mm module size.
Detail Description:
Cabinet dimension could be 1024×768 mm or 1024×1024 mm;
Meanwell UL standard power supply with 5V60A;
Multifunctional card for automatic brightness control.
Application:
The full-color LED display has a strong visual impact, an ultra-clear surface and a huge shock. There is no
obvious strong advertising charm! It is conducive to the shaping and dissemination of brand image. Many
large screens are local landmarks and are themselves a good advertisement.

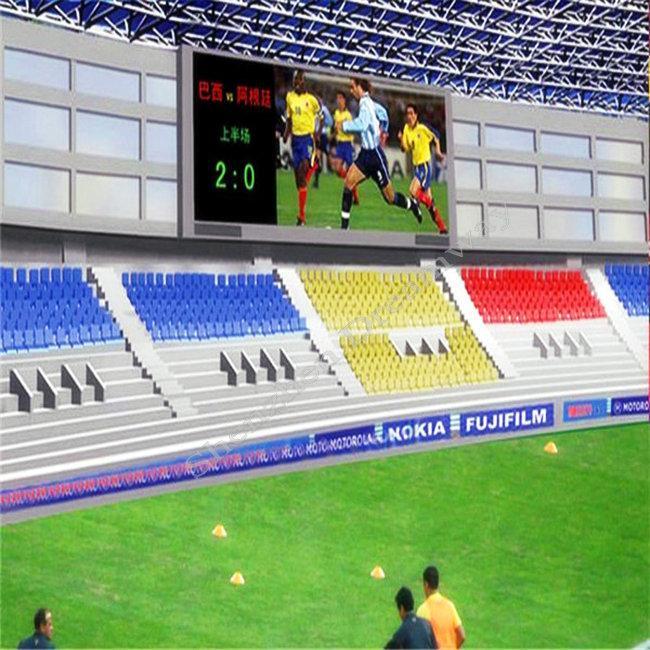

It is used for soccer or football stadium for live broadcasting matches report.
Specifications:
| Pixel Pitch | 16mm |
| Pixel Composition | 1R1G1B |
| LED Type | DIP546 |
| Resolution | 3,906 dots/sq.m |
| LED Module Pixel | W 16 × H 16 = 256 dots |
| LED Module Size | W 256 × H 256 mm |
| Cabinet Material | Steel waterproof cabinet |
| Driving Method | Static scan |
| Brightness | ≥7500 nits/sq.m |
| Refresh Rate | ≥1200 Hz |
| Out of Control Dot Rate | ＜0.0001 |
| Earth Leakage Current | ＜2mA |
| MTBF | ＞5,000 hours |
| Life Span | ＞100,000 hours |
| Power Supply | 110V/60HZ and 220V/50HZ interchangeable |
| Humidity | 10%~90% |
| Control Method | Synchronization control |
| Input Signal | DVI, COMPOSITE VIDEO, S-VIDEO, HDMI |
