16bit Shelf Digital Signage
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
12-20 working days after deposit
Brand:
JuCaiYuan
Product Description

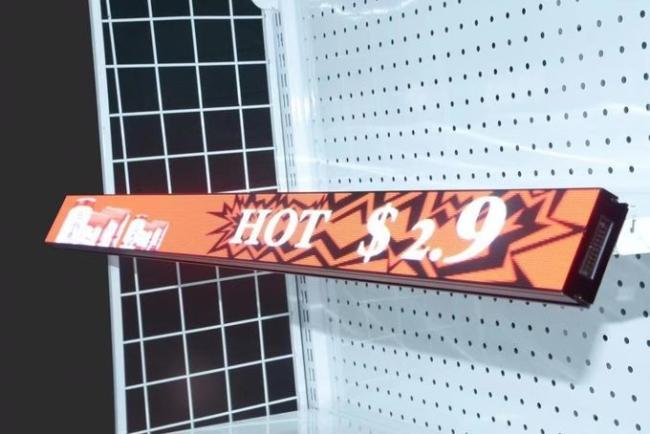

HD Small Pitch P1.875 Shelf LED Display Screen Full Color 16 Bit Gray Scale
Detailed :
Supermarket goods shelf led display.First LED all digital shelf edge technology capable of delivering dynamic pricing ,promotion,product and brand related information at the shelf edge.High resolution and standard module size.COB Screen Can Shockproof&Waterproof&Dustproof and can wiped with rag when it is splashed,hammer to knock and watering cabinet surface.It is very easy to installtion and connection.Revolutionary design with magnet&shackle.No tool,quickly install and remove.
Technical Parameters:
| Pixel Pitch | 1.875mm |
| LED configuration | COB 3 IN 1 |
| SIZE | 360*60*25mm |
| Resolution ratio | 192*32 |
| Chasis material | aluminum |
| Weight | 0.68kg |
| Brightness | 600nit |
| Gray scale | 16bit |
| Color | 281 trillion |
| Contrast Ratio | 3000:01:00 |
| Refresh rate | 1920HZ |
| Max .Consumption | 10W |
| Ave. Consumption | 4W |
| Viewing angle | 160° /160° |
| Working voltage | DC 5V |
| Life Span | >100,000 Hours |
| Input voltage | AC100V-240V |
COB LED shelf display screen advantage :
1: the thickness from 2.0 ~ 2.0 mm thickness of PCB, the least weight reduced to 1/3 of the original traditional products, can significantly reduce the structure for the customer, transportation, and engineering cost.
2: Anti-collision compressive: COB products are directly to the LED chips encapsulation inside the concave lamp of PCB, and then encapsulated with epoxy resin adhesive curing, lamp bump into spherical surface, smooth and solid, resistance to wear.
3: Great perspective: COB encapsulation using spherical shallow Wells, Angle is greater than 175 degrees, close to 180 degrees, and has more excellent optical diffuse color into light effect.
4: Heat dissipation ability: COB products is to encapsulate the lamp on the PCB board, through the copper foil on the PCB board will wick fast heat, and the copper foil thickness of the PCB board has strict technical requirements, almost will not result in a serious light attenuation.So few dead lamp, prolong the life span of the LED display.
5: Easy to clean, no mask, dust or cloth to clean with water.
6: All-weather fine features: using triple inoculation, waterproof, moisture, corrosion, dust, static, oxidation, uv effect is outstanding;Meet the all-weather conditions, when it's minus thirty degrees to 80 degrees centigrade temperature environment can be normal use.
