P9.375 SMD3528 16bit Led Moving Message Display Board

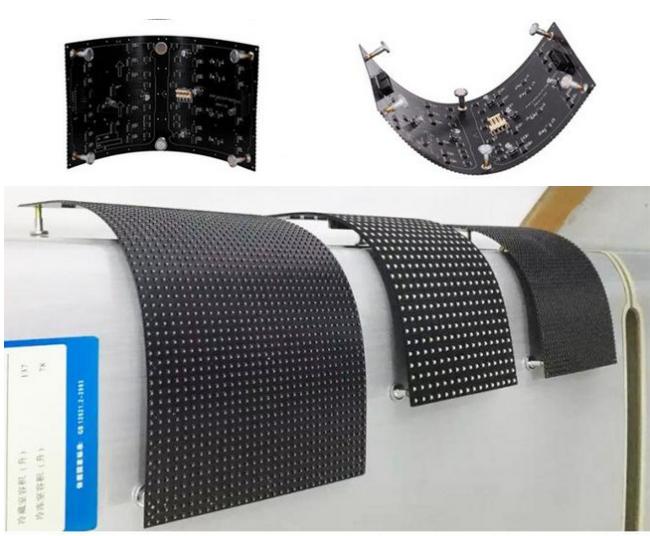

9.375mm Flexible LED Display Panels Slim Brightness Oled Flexible Led Curtain Screen
Features:
1. Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2. Assembling screen with soft led modules directly,saving time and effort,easy operation.
3. Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4. No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5. Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
6. Widely applied in shaped stage background/exhibition/shopping mall etc.
Soft LED Display Panel Specifications:
| Indoor Fixed Series -Parameters | ||||
| Model | LM-SF-P2 | LM-SF-P2.5 | LM-SF-P3 | LM-SF-P10 |
| Pixel Pitch | 2 mm | 2.5 mm | 3 mm | 10 mm |
| LED Type | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 240*120 mm | 240*120 mm | 240*120 mm | 256*128 mm |
| Pixel Density | 120*60 dots | 96*48 dots | 80*40 dots | 32*16 dots |
| Refresh Rate | ≥ 1200Hz | ≥ 1200Hz | ≥ 1200Hz | ≥ 1200Hz |
| Gray Scale | 16 Bit | 16 Bit | 16 Bit | 16 Bit |
| Brightness | 800-1500 cd/㎡ | 800-1500 cd/㎡ | 800-1500 cd/㎡ | 800-1500 cd/㎡ |
| Scan Way | 1/30 | 1/24 | 1/20 | 1/8 |
| Frame Rate | 50HZ~60HZ | 50HZ~60HZ | 50HZ~60HZ | 50HZ~60HZ |
| Viewing Angle | H:140°, V:140° | H:140°, V:140° | H:140°, V:140° | H:140°, V:140° |
| Max.Power Consumption | 900W/m2 | 800W/m2 | 800W/m2 | 600W/Panel |
| Avg.Power Consumption | 380W/m2 | 350W/m2 | 320W/Panel | 250W/Panel |
| Control System | Nova/Linsn/Dbstar | Nova/Linsn/Dbstar | Nova/Linsn/Dbstar | Nova/Linsn/Dbstar |
| Operation System | Windows XP/7/10 | Windows XP/7/10 | Windows XP/7/10 | Windows XP/7/10 |
| Working-Temperature | -20℃~60℃ | -20℃~60℃ | '-20℃~60℃ | -20℃~60℃ |
| Working Humidity | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Input Voltage | AC 110~220 V | AC 110~220 V | AC 110~220 V | AC 110~220 V |
| Blind spot rate | ≤0.01% | ≤0.01% | ≤0.01% | ≤0.01% |
| MTBF | 35000 Hour | 35000 Hour | 35000 Hour | 35000 Hour |
| Lifespan | 100000 Hour | 100000 Hour | 100000 Hour | 100000 Hour |
| Certification | CCC,CE,RoHs,ETL | CCC,CE,RoHs,ETL | CCC,CE,RoHs,ETL | CCC,CE,RoHs,ETL |
Flexible led display screen Advantages:
1. High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2. Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3. Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4. Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5. Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
