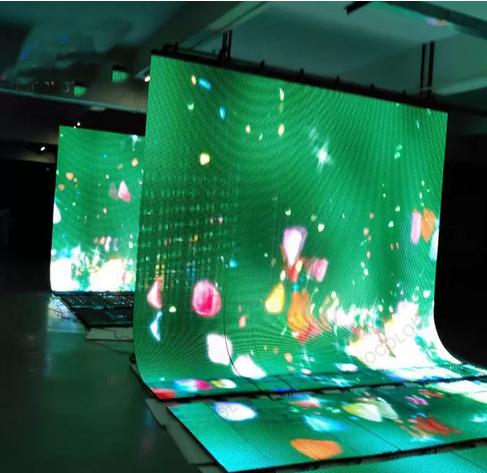

IP65 2000Hz 1000x500mm Flexible Programmable LED Display
Adjustable Brightness P10 Flexible Led Wall Display Screen Front And Rear Maintenance
Features:
1. Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2. Assembling screen with soft led modules directly,saving time and effort,easy operation.
3. Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4. No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5. Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
6. Widely applied in shaped stage background/exhibition/shopping mall etc.
Adjustable Brightness P10 Flexible Led Wall Display Screen Front And Rear Maintenance
- Exceptionally Lightweight and Ultra-slim, with astonishing average weight at 10-20kg/sqm, uBar series are designed for ease of installation and maintenance, eliminating huge heavy load supporting structure reinforcement cost which is often associated with conventional LED video wall installation, besides apparent huge transportation and logistics benefits.With all the huge installation and maintenance benefits, uBar cost often means a fraction of conventional LED display when it comes to billboard applications.
- Amazing All-weather IP67 Rated & Fabulously Aerodynamic Design, Amazing front/rear IP67 rated, UV-resistant, rendering uBar a reliable solution for both indoor and outdoor environment.Fabulously aerodynamic wind-resistant design allows uBar withstand harsh storms and typhoons
- Groundbreaking Transparent Fanless Design, Groundbreaking cost-effective fanless self-cooling design renders uBar ultra-slim structure and amazing 20-80% transparency, which not only help to bring great installation & maintenance advantages, but also make transforming glass façades into vivid video walls possible. High transparency helps to maintain outdoor viewing from inside a venue while putting on a fabulous video show outside.
Soft LED Display Panel Specifications:
| Technical parameter | |||||
| LED bar | Pixel pitch(mm) | P10( horizontal 12.5mm, vertical 8.33mm ) | |||
| LED Brand | Nationstar | ||||
| LED Type | SMD3535 (RGB) | ||||
| LED Module | Module size | 1000mm(H)*500mm(W) | |||
| Pixel density | 9600 dots/m² | ||||
| Display pixel | 960*320 | ||||
| Cabinet | Permeability | 30% | |||
| Brightness | 5500－6000cd/m² (adjustable) | ||||
| Weight | 13kg/m² | ||||
| Refresh rate | 2000 Hz | ||||
| Average power | 260W/m² Max. Power: 960W/m² | ||||
| Working temperature | -10℃ ~ 50℃ | ||||
| maintenance | Front and rear | ||||
| levels of protection | IP65 | ||||
| Control system | synchronous control system | ||||
Flexible led display screen Advantages:
1. High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2. Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3. Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4. Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5. Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
