Lightweight Aluminum IP40 2000Hz LED Video Dance Floor

Price Negotiable
Price: negotiable
MOQ: negotiable
Delivery Time: 20 days after receiving the deposit
Brand: jucaiyuan
Product Description

Lightweight Aluminum Interactive LED Floor Tile P6.25 SMD Full Color Outdoor Indoor





Features:



1. Robust panel with heavy load of 1000kg/sqm, high contrast, non-reflective, non-slip, high level of scratch resistance.
2. Accurate aluminum framework ensures seamless surface and great heat dissipation, fan-less design, noise-free.
3. Data and power cables fixed on panel, save half of the time for wiring.
4. Front and rear IP65 waterproof. With front and rear IP65 waterproof design, it can satisfy the use requirement in many applications.
5. The shape of the grid on mask can be customized to be square, round etc.



Description



1.Scree keeps ranking top 10 in recent 5 years in Shenzhen LED industry.



2. The product pixel pitch series ranges from P1.25 to P16, screen series including indoor&outdoor fix install display, stage rental screen, poster screen, lamp-post screen, football screen, dual-side advertising screen, pharmacy LED sign, flexible screen, dance floor screen,scrolling screen, etc.



4. We own 2 plants with production area 38,000 square meters, 100 SMT machines keep running day and night.



5. Number of employees is stable at around 250, and the age is between 20-50.



6. Great production capacity. Monthly 10,000 square meters LED displays, weekly30,000 pcs LED modules.



7. Short lead time. Module delievery time 5-7 days, LED display delievery time 10-20 days.



8. We have passed CCC/CE/FCC/BIS/RoHS/ISO9001 certification. As well, our products have won prizes and praises from our clients domestic and overseas.





Application:

Widely used in stage fixed installation,singing and dancing event evenings,various conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.



1 Screen Area 6*5meters
2 Cabinet Quantity 120 cabinets
3 Brightness ≥1800cd/㎡
4 Brightness(Max./Min.) 1.2:1
5 Driving Method 1/6 Scan
6 View Angle Horizontal140° Vertical 140°
7 Pixel Pitch 6.25mm
9 Fresh requency >2000 HZ
10 Frame Frequency 50 -- 60Hz
11 Input Voltage AC220V/50Hz or AC110V/60Hz
12 Defects Rate ≤0.00001
13 Power Consumption Max: 680W/㎡ Average: 280W/㎡
14 MTBF >10,000 hours
15 Life span ≥100,000 hours
16 Module Display Brightness Uniformity <3%
17 Earth Leakage Current <3mA
18 Protective Grade IP40
19 Temperature-operating ﹣25℃~60℃
20 Humidity-operating 10%~95%
21 Brightness control 0~256 adjustable
22 Controlling system Novastar
23 Power supply G-energy/Meanwell

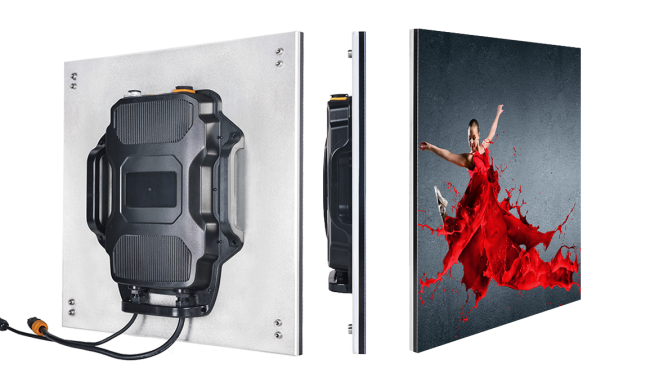

Lightweight Aluminum LED Video Dance Floor P6.25 SMD Full Color Outdoor Indoor 0

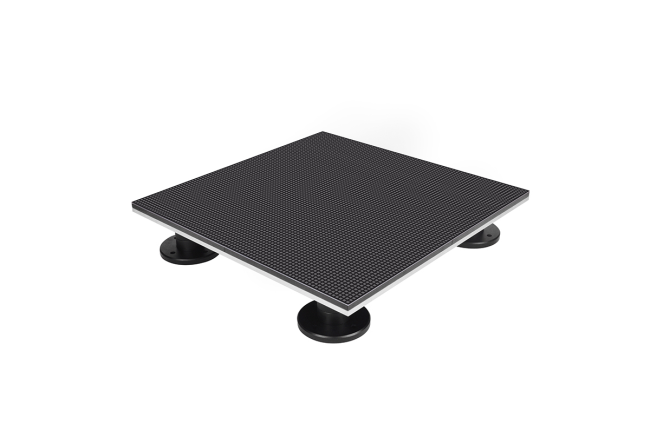

Lightweight Aluminum LED Video Dance Floor P6.25 SMD Full Color Outdoor Indoor 1
