320x320mm P16 LED Display Screen For Advertising Outdoor
Front Service Outdoor Led Billboard Advertising Screen Display 320 * 320 Mm P16 SMD
Nowadays,the led display for advertisement widely use in the world.Especially the back access outdoor led billboard.But sometimes there is no maintenance space behind the led display,we can consider front maintenance,our fast lock front service led module is meet this applicaion.
See features as below:
1, Maintenance can be from front or rear side.The led billboard module designed to 2 locks use T-tool, it is more easier and faster than the 8 screw holes of traditional led module.
2, It can be installed without taking the space for back maintenance channel into consideration, thus improving your work efficiency.
3, Long-term Brightness:more than 7000nit brightness throughout product lifetime of the LED display
4, It Controlled with PC by synchronization, with high refresh rate.Sure Async control is also avaliable.
Product Features:
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness,good waterproof IP65,anti-corrosion,anti-rust,long life span>100000hours
3.High pixel density, high resolution and high definition,perfect display vision
4. Lower power consumption,good heat dissipation,low noise created.
5. Cabinet with locks,connectors,easy and quick to assemble without tools in short time

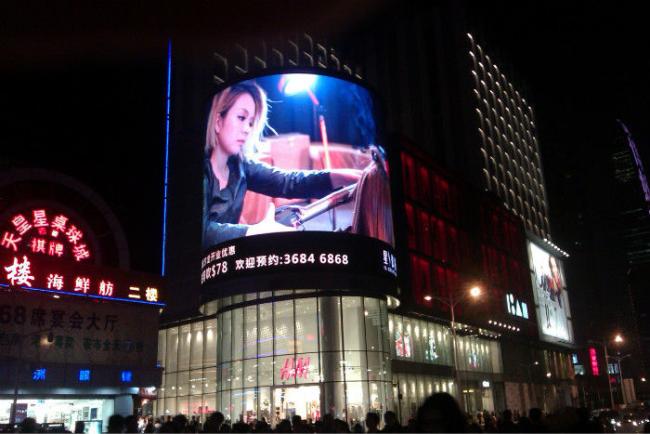

6. Widely used for commercial display,advertising, stage background,mobile display. traffic display,sports led display etc.
Parameter
| LED MODULE | ||
| LED Module design | Front Service with T-tool | |
| Pixel pitch(mm) | 16mm | |
| Led lamp | SMD3535 | |
| Pixel configuration(dot/m2) | 3906dot/m2 | |
| LED Module dimension(mm) | 320mm x 320mm | |
| LED Module resolution(dot) | 20 dots x 20 dots | |
| Driving mode | Static state | |
| LED CABINET | ||
| Cabinet size(mm) | 1280mm x 960mm / 960mm x 960mm | |
| Cabinet material | Iron Cabinet or Aluminum Cabinet | |
| Module quantity(pcs) | 9pcs led modules | |
| Cabinet weight(kg/m2) | 50 | |
| Power Max(w/m2) | 750w/m2 | |
| Power average(w/m2) | 375w/m2 | |
| LED BILLBOARD | ||
| Brightness(cd/m2) | >5000cd/m2 | |
| Viewing angle(H/V) | Horizontal 110 deg. Vertical 50 deg. | |
| Power input(V) | AC 110v /220V | |
| Brightness control(level) | 256 levels | |
| Blind spot rate | ＜1/10000 | |
| Lifetime at 50% brightness(h) | 100,000 hours | |
| Ingress Protection | IP65/IP54 | |
| Operation temperature | ﹣30 ℃ ～﹢50 ℃ | |
| Storage temperature | ﹣60 ℃ ～﹢80 ℃ | |
| Control way | Standard:Wired Optional:3G/4G/WIFI | |
| Input interface(with video processor) | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI, HDSDI | |
