SMD3535 Stadium Perimeter LED Display
Quick Detail:
1) Fastly heat dissipation
2) Good quality led trip with low led attenuation, long lifespan
3) screen frame and fast installed connector, realize plane assembly
4) anti-striking, broken-resistant, and safe with special materials of macromolecule.
5) With soft pillow on the top part of the screen which can help to protect athlete.
Application:
The full-color LED display has a strong visual impact, an ultra-clear surface and a huge shock. There is no
obvious strong advertising charm! It is conducive to the shaping and dissemination of brand image. Many
large screens are local landmarks and are themselves a good advertisement.

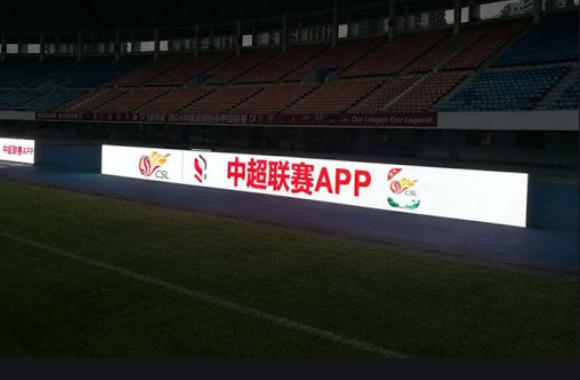

It is used for soccer or football stadium for live broadcasting matches report.
Specifications:
| Pixel Pitch | 16mm |
| Module Size | 256mm*128mm |
| Module Resolution (W*H) | 16 dots*8 dots |
| Pixel Density | 3906 dots/ ㎡ |
| LED Type | SMD3535 |
| Pixel Configuration | 1R1G1B |
| Wavelength (R.G.B) | R:625±2nm G:525±2nm B:470±2nm |
| Drive Mode | Static drive Constant Current |
| Cabinet Size | 1280×896×180mm |
| Cabinet Resolution | 80dots×56dots |
| Brightness | ≥5500cd/㎡ |
| Contrast | ≥2000:1 |
