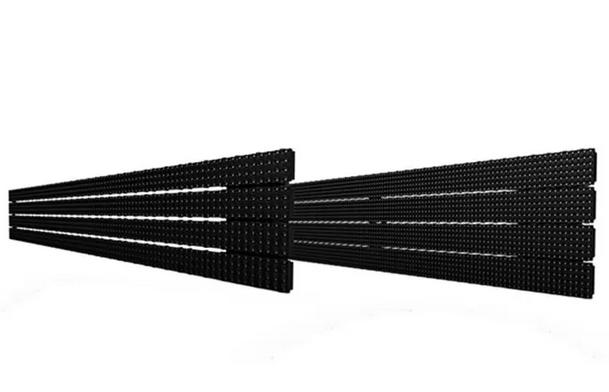

1R1G1B Stadium Outdoor P12.5 Flexible LED Curtain Screen
Features:
1. It can meet different needs for both inner arc and outer arc structure ;
2. Curve shape with -15°~ +15°curve angle adjustment ;
3. SMD3535 leds with outdoor high brightness ;
4. With waterproof and wind-resistance design , for outdoor application ;
5 . Transparent and un-transparent structure for your optional .
Soft LED Display Panel Specifications:
| Pixcel pitch | 12.5 mm |
| Pixel density /sq.m | 6,400 pixels |
| LED configuration | 1R1G1B SMD 3535 |
| Module size | 500 x 95 mm |
| Cabinet size | 500 x 1,000 mm |
| Panel resolution | 40 x 80 dots |
| Scan way | 1/2 |
| Gray level | 16 bit |
| Viewing angle | H: 140° ; V : 140° |
| Refresh rate | 1,920 Hz |
| Panel weight | 12.5 kg |
| Brigtness | 6,500 CD / sq.m |
| Max. power consumption | 410 W/Panel |
| Avg. power consumption | 130 W/ Panel |
| Input voltage | AC 110-220 V (+-5 %) |
| Frame rate | 50-60 Hz |
| Blind dot rate | ≤ 0.01% |
| Control system | Novastar/ Linsn |
Flexible led display screen Advantages:
1. High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2. Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3. Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4. Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5. Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
