6m Pixel 5500nit 1R1G1B Fixed Advertising Led Display
Waterproof P6 outdoor AVOE LED advertising screens IP65 RGB 7000cd/sqm
Features
1.With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.
2.High refresh rate, seamless splice, good uniformity, HD video with vivid picture.
3.RGB deep gray processing to show any color
4.With the protection rating of IP65, face any bad weather.
5. Brand new mask design makes the light from LEDs almost non-reflection.
Application

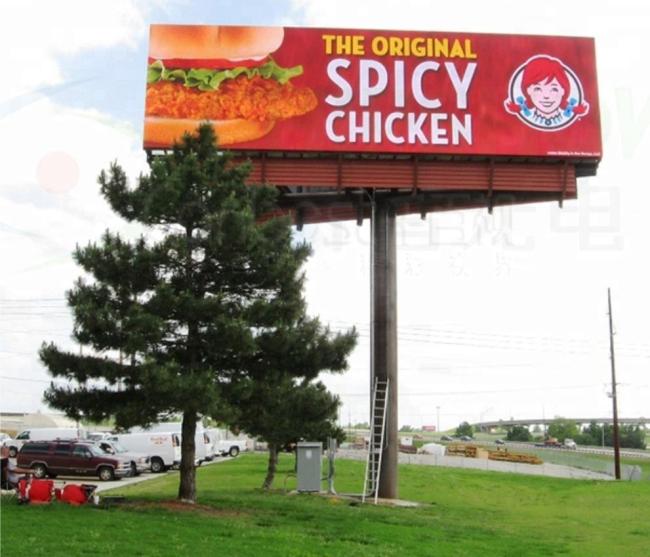

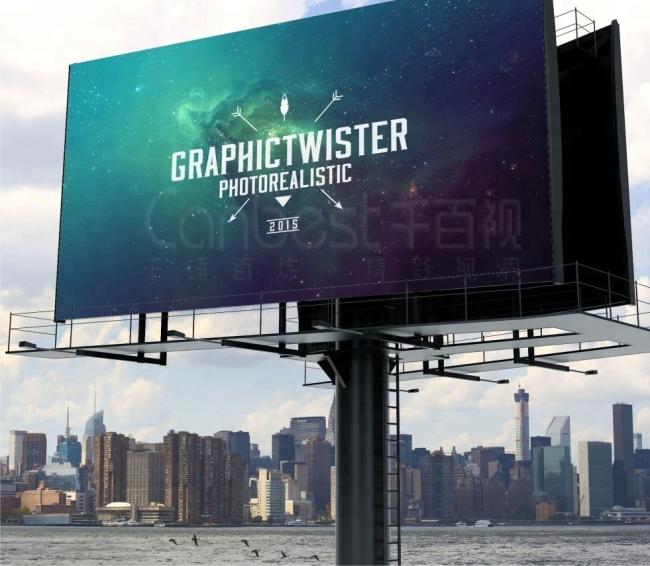

1. Outdoor advertising, digital billboards, advertising in big companies
2. Sports halls, fields, playgrounds.
3. Airports, bus stations and railway passenger terminals.
4. Facades of shopping malls, department stores, banks and car dealerships.
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
Specifications :
| Outdoor SMD P6 | |||||
| Resolution/mm | 6 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/m² | ||||
| Module resolution | 27778 | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
Competitive advantages:
1, P5 SMD outdoor full color LED display uniform in brightness and color;
2, Full color P5 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P4 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use
