Fixed P10 SMD3528 1800nits Waterproof Led Video Wall
Product features
Our Transparent LED Screen Display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.
The Transparent LED Screen Display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.
1. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
2. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
3. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C
Applications:

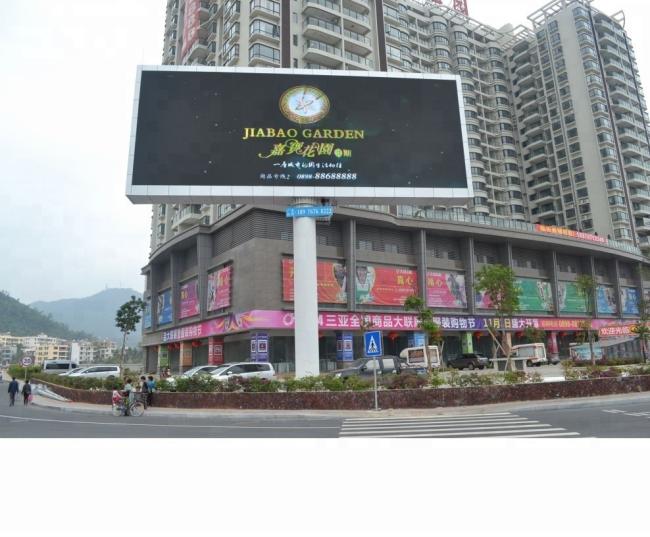

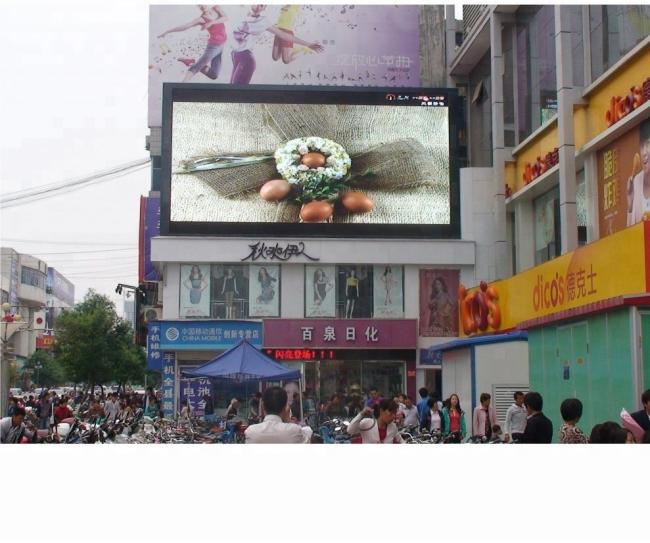

Our Full Color SMD Outdoor LED Display is mainly for outdoor usage, such as commercial advertising,
mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange
centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways,
airports, harbors, etc.
Technical Parameters:
| P10 1/8 Scan Full Color Module of Indoor | ||
| Item | Unit | Parameter |
| Pixel Pitch | mm | 10.00 |
| Pixel Density | dots/sqm | 10,000 |
| Resolution of Module | dots | 32*16 |

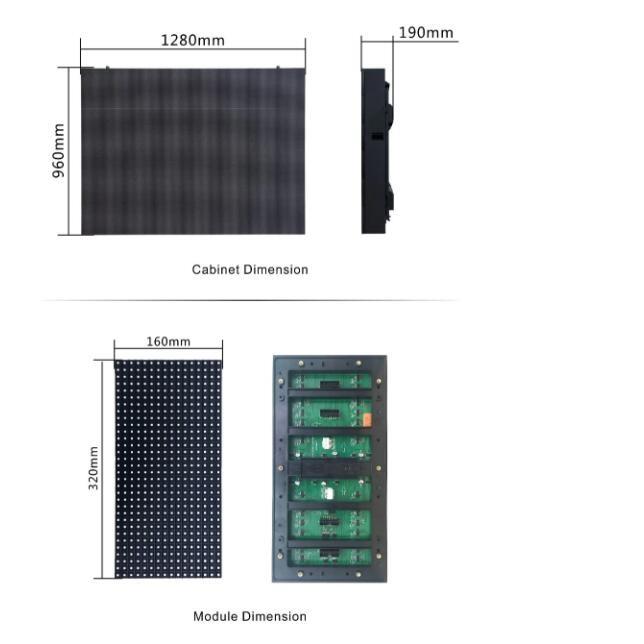

| Module Size | mm | 320*160 |
| HUB | 75 | |
| Led Package | SMD3528 | |
| Pixel Configuration | SMD3528 1R1G1B | |
| Chip Brand of LEDs | Silan/Epistar/Cree/Nichia | |
| Module Weight | kgs/pc | 0.38KG |
| Brightness (White Balance) | nits(cd/sq.m) | 1500-1800 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/8 Scan | |
| View Distance | M | 3--50 |
| Best View Distance | M | 6--30 |
| Viewing Angle-Horizontal | deg. | 120 |
| Viewing Angle-Vertical | deg. | 120 |
| Module Maximum Power | W | 25 |
| Max. Power Consumption | W/sq.m | 500 |
| Avg. Power Consumption | W/sq.m | 150 |
