China SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction for sale

SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction

Name: SMD1515 Outdoor LED Video Wall P1.56 P1.25 P1.923 Magnetic Suction
Brand: Shenzhen Jucaiyuan OptoelectronicTechnology Co.,Ltd

Price Negotiable

Price: negotiation

MOQ: 1 PCS

Delivery Time: 3-25 working days after finished the payment

Brand: JuCaiYuan

Product Description

Overview

Quick Details

Application:: Indoor, Advertising

Color:: Full color

Panel Size:: Customized

Pixel Pitch:: 1.923mm

Place of Origin:: Guangdong, China

Model Number:: P1.923 indoor high definition

Brand Name:: TOPLED

Function:: SDK

Product name:: P1.923 high definition Led Display

Pixels:: 1.923mm

Usage:: Indoor

Certificate:: CE ROHS FCC

Brightness:: ≥900nits

Physical Density:: 270,400pixels/m²

Scanning Mode:: 1/30

Module size:: 200*150mm

Life span:: 100000hours

Supply Ability

Supply Ability: 50000 Piece/Pieces per Month

Packaging & Delivery

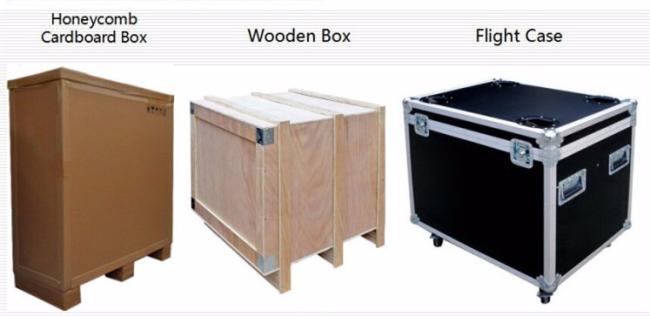

Packaging Details: 1. Flightcase carton 2. Honeycomb carton 3. Polywood case

Port: Shenzhen

Picture Example:

Lead Time:

Quantity(Square Meters)	1 - 200	201 - 500	501 - 1000	>1000
Est. Time(days)	7	10	15	To be negotiated

Products Parameter


P1.923 High definition full color digital led display for indoor advertisingAluminum alloy die-casting technology, light and beautiful quality, using LED special high-brush IC+ hidden IC, easy to

achieve high definition image, professional and high-efficiency IC design, high-def energy-saving one step.

* HD quality

* Best visual image

* Strong resistant

* Good flatness
* Magnetic suction installation
* Front and rear maintenance

Indoor small pixel high definition series
Type	P1.25	P1.5625	P1.667	P1.875	P1.923
Pixel Pitch(mm)	1.25	1.5625	1.667	1.875	1.923
Physical Density (dot/sqm)	640,000	409,600	360,000	284,444	270,400
Brightness	≥900nits	≥900nits	≥900nits	≥900nits	≥900nits
Scanning Mode	1/30	1/32	1/30	1/30	1/30
LED type	SMD1010	SMD1010	SMD1010	SMD1515	SMD1515
Module Size	150×168.75mm	150×168.75mm	200×150mm	150×168.75mm	200×150mm
Module Resolution	120×135pixels	96×128pixels	120×90pixels	128×96pixels	104×78pixels
Grey Scale	16bit	16bit	16bit	16bit	16bit
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Average Power	200w/m²	200w/m²	200w/m²	200w/m²	200w/m²
Cabinet Size	600×337.5mm	600×337.5mm	400×300mm	600×337.5mm	400×300mm
Cabinet Weight	5.9kg	5.9kg	3kg	8.5kg	3kg
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Input Voltage	AC 110V～220V ±10%	AC 110V～220V ±10%	AC 110V～220V ±10%	AC 110V～220V ±10%	AC 110V～220V ±10%
Protection Level	IP45	IP45	IP45	IP65	IP65
