China Indoor & Outdoor LED Stadium Screen P5 P8 P10mm Sport Stadium LED Perimeter Display football scoreboard LED video wall for sale

Indoor & Outdoor LED Stadium Screen P5 P8 P10mm Sport Stadium LED Perimeter Display football scoreboard LED video wall

Name: Indoor & Outdoor LED Stadium Screen P5 P8 P10mm Sport Stadium LED Perimeter Display football scoreboard LED video wall
Brand: Shenzhen Jucaiyuan OptoelectronicTechnology Co.,Ltd

Price Negotiable

Price: negotiation

MOQ: 1 Square meter

Delivery Time: 3-25 working days after finished the payment

Brand: JuCaiYuan

Product Description

Overview

Quick Details

Application:: Event, Stage, Advertising, etc...

Color:: Full Color

Panel Size:: 960*960 mm/pcs

Pixel Pitch:: 5mm/8 mm/10mm (optional)

Place of Origin:: Guangdong, China

Model Number:: Stadium LED Display

Brand Name:: JUCAIYUAN

Cabinet size:: 960 mm*960 mm

Pixel density:: 40000/15625 /1000 dots/㎡

Pixel configuration:: 1R1G1B

Package mode:: SMD 3535

Drive type:: Constant drive(IC5020)

Scan mode:: 1/4 scan

Appearance:: Die casting aluminum

Brightness:: ≥7000 cd/sqm

Warranty:: 2 Years

Refresh rate:: ≥1920 Hz(customized)

Supply Ability

Supply Ability: 500 Piece/Pieces per Month

Packaging & Delivery

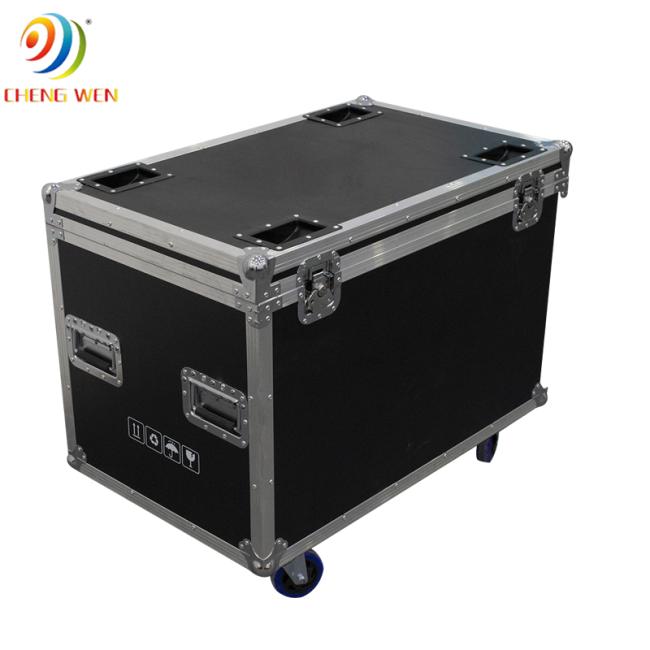

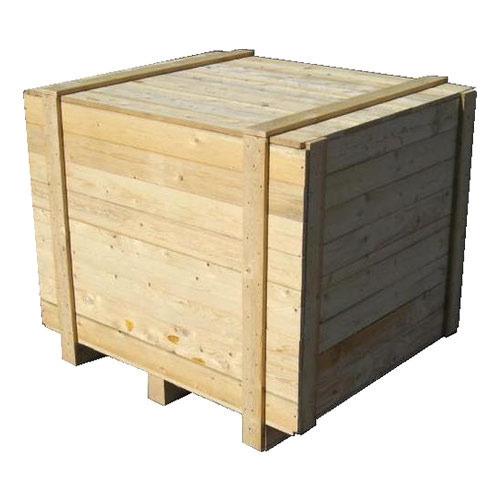

Packaging Details: Carton/Wooden cases/Flight case

Port: Guangzhou port/Shenzhen port

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 50	51 - 100	>100
Est. Time(days)	7	15	To be negotiated

High refresh rate, no flicker during live switch

Up to 3800Hz refresh rate,without the phenomenon of drag and flicker under the shooting conditions of professional cameras andcameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality.

320MMX160MM STANDARD SIZE MODULE

960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance. Also it is very convenient when you change the pixel pitch such as P5mm P8mm and P10mm. You dont need to change anything, just change the module as they have the same module size and structure.

Exquisite cabinet design features

960mm Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.

Independent support structure

There is an independent support structure that can be rotated and adjusted, and it can still stand even when subjected to a strong external impact. The installation angle of the cabinet can be adjusted according to the actual site conditions, and the angle can be flexibly changed. It supports 60 ° / 65 ° / 70 °/ 75 °/ 80 °/ 85 °/ 90 ° multi-angle adjustment.

Soft mask design

The soft surface and unique soft protective pad can protect people’s safety, even if someone hits the LED screen, it is very effective to protect people’s safety.

DUSTPROOF, WATERPROOF AND CORROSION RESISTANT

Pecific independent waterproof module and the waterproof enclosure with excellent sealing performance to protect cabinet, which is dustproof, waterproof and corrosion resistant, and the protection grade is up to IP65.

ULTRA THIN BOX 126 MM

The outdoor stadium led box weighs only 28.5kg and its thickness is only 126mm. The ultra light cabinet body is made of aluminum alloy and has protective performance. The delicate design of the lightweight LED display makes it very easy to install. In addition, the quick lock feature can be installed and uninstalled without any technical skills.

Specification

Pixel Pitch	P10
Pixel Configuration	SMD3535
Density (Pixels/㎡)	10000
Module Resolution (Pixel)	32×16
Module Size (mm)	320x160
Driving Mode (Duty)	1/5
Cabinet Size (mm)	960x960
Cabinet Weight (KG)	28.5
Brightness (CD/㎡)	≥6,500
Viewing Angle (°)	120
Gray Grade (Bits)	14
Operation Power	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	550
Avg. Power Consumption (W/㎡)	300
Frame Frequency (Hz)	≥60
Refresh Frequency (Hz)	≥3,840
Working Temperature (ºC)	-20～+60
Lifetime (Hours)	100,000
Protecting Grade	IP65(front),IP54(rear)
