Factory Waterproof IP65 High Brightness Advertising Outdoor exterior P3.91 P4.81 P5.95 P4 P5 P6 P8 P10mm LED Display Scr
new 2020 Full Color rental display panels P2 P3 P4 P3.91 P4.81 P5.95 pantalla indoor outdoor led screen
Why Choose US
A: Support 24 Hours Online Guide & Help if you have any problems!
B: High quality original LED Chip with CE,ROHS,FCC certified!
C: We gaurantee to test every part before the delivery and gaurantee the quality!
Function and Technology Character:
1. Support multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on
2. The screen can get singal of camera, video, VCD, DVD, LD, TV and so on.
3. Brightness, contrast, saturation can be adjusted automatically by itself and manual.
4. Clear picture without flicker and distortion.
5. Show everything with your PC synchronously.
6. Super correcting technology for distortion.
7. One interface for sound signal and two ports for video signal at least.
8. Connected and controlled by PC via Lan and remote control.
9. Multiform language are available,such as English, French, Germany, Spanish, Russian and so on
Specifications:
| P3.91 New Stage Rental LED Screen | |||
| Module model | P3.91 | Panel size | 500x500mm |
| Pixel composition | SMD1921 (RGB 3in1) | Panel resolution | 128x128dots |
| Pixel pitch | 3.91mm | Supply voltage | AC110V~AC220V (+ -20%) |
| Module resolution | 64x64 dots | Brightness | 6500cd/sqm |
| Module size | 250x250mm | Viewing angle | 140°/160° |
| Drive method | Constant current | Max power consumption | 850w |
| Scanning method | 1/16 scan | Average power consumption | 385W |

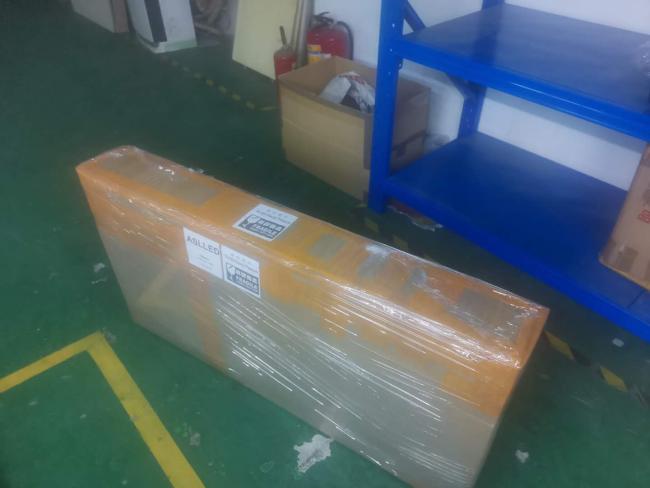

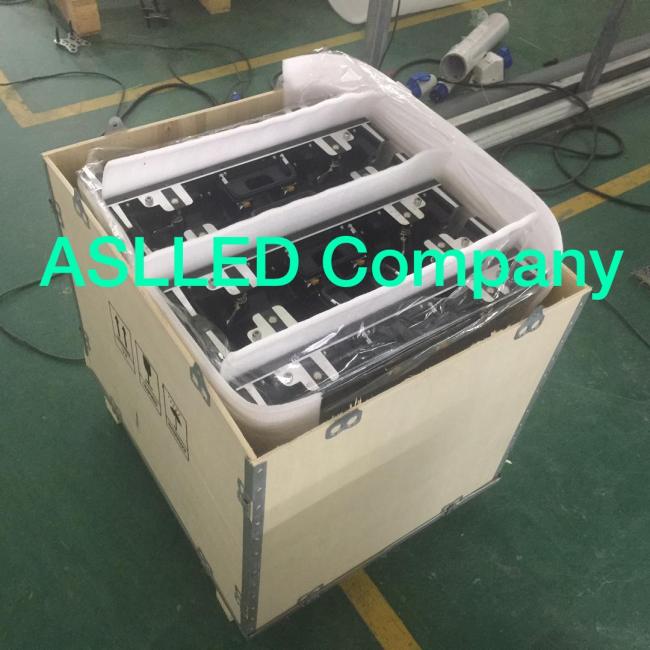

recommended case:
1. P3.91 led panle 500x500mm: 6pcs
2. Power cable: 6pcs
3. Signal cable: 6pcs
4. Receiving card: 6pcs
5. WIFI sending card: 1pcs
6. Woonden case package: 1pcs
Control system diagram:
