China Factory Waterproof IP65 High Brightness Advertising Outdoor P4 P5 P8 P10 LED Display Screen for sale

Factory Waterproof IP65 High Brightness Advertising Outdoor P4 P5 P8 P10 LED Display Screen

Name: Factory Waterproof IP65 High Brightness Advertising Outdoor P4 P5 P8 P10 LED Display Screen
Brand: Shenzhen Jucaiyuan OptoelectronicTechnology Co.,Ltd

Price Negotiable

Price: negotiation

MOQ: 1 Square meter

Delivery Time: 3-25 working days after finished the payment

Brand: JuCaiYuan

Product Description

Overview

Quick Details

Application:: Outdoor, Outdoor place

Color:: Full color

Panel Size:: 256* 128mm

Pixel Pitch:: 4 mm

Place of Origin:: Shenzhen ,China

Model Number:: P4

Brand Name:: JUCAIYUAN

Display function:: Video

LED chip:: Epistar

Screen Dimension:: Customised

Installation:: Wall-mounted

Life span:: 100,000 Hours

Certificate:: FCC CE RoHS ISO IP65

Warranty:: 3-5Years

Led type:: SMD2525

Body size:: 1024mm*1024mm

Supply Ability

Supply Ability: 10000 Square Meter/Square Meters per Day

Packaging & Delivery

Packaging Details: Flight Case Or Wooden Box

Port: ShenZhen

Picture Example:

Lead Time:

Quantity(Square Meters)	1 - 20	21 - 200	>200
Est. Time(days)	15	20	To be negotiated

LED Display series:
1) Small pitch pixel: P1.2,P1.5625,P1.667,P1.875,P1.9,P1.923,P2,P2.5
2) Professional Rental led display:P3.91,P4.81,p5.95
3) Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
4) Outdoor LED display: P4,P5,P6,P8,P10

Product Description

1.High BrightnessDurable outdoor SMD led with 5500-7000 nits high brightness to match different occasions;

2.High Uniformity & Contrast
High quality led lamp and mask for super bright display and high contrast image;

3.Anti-UV Module
Anti-Oxidation module frame with anti-UV material to protect high temperature ultraviolet radiation;

4.IP65 Waterproof Protect
With waterproof tape around the modules, prevent the rain and dust;

5.Reliable
Over 100000 working hours for longtime use;
6.Multi-Control Systems
Synchronous and asynchronous systems for option.

Product advantages

Specification

Parameters	P6	P8	P10
Pixel Pitch(mm)	6mm	8mm	10mm
Pixel Conguration	SMD 2727	SMD 3535	SMD 3535
Pixel Matrix per Panel(dots)	32 x 32 dots	32 x 16 dots	32 x 16 dots
Pixel Density(dots/m²)	27,777 dots/m²	15,625 dots/m²	10,000 dots/m²
Cabinet Size(mm)	960 x 960 x 65mm	1024 x 1024 x 65mm	960 x 960 x 65mm
Panel Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Panel Weight(kg/panel)	5.6 kg/panel (12.3 lb/panel )	5.6 kg/panel (12.3 lb/panel )	5.6 kg/panel (12.3 lb/panel )
Color Depth(Bit)	14 bit	14 bit	14 bit
Refresh Rate(Hz)	≥1920Hz	≥1920Hz	≥1920Hz
Driver Method/scan	Scan 1/8	Scan 1/4	Scan 1/2
Brightness(nits)	900nits, adjustable	900nits, adjustable	900nits, adjustable
Horizontal Viewing Angle(°)	160 °	160 °	160 °
Vertical Viewing Angle(°)	160 °	160 °	160 °
AC Power Input(V)	AC110V~ 220V ±10%	AC110V~ 220V ±10%	AC110V~ 220V ±10%
AC Power Frequency(Hz)	50 ~ 60 Hz	50 ~ 60 Hz	50 ~ 60 Hz
Max. Power(W/m²)	550 W/m²	550 W/m²	550 W/m²
Avg. Power(W/m²)	180 W/m²	180 W/m²	180 W/m²
Storage/Operating Humidity(RH )	10% ~ 90%RH	10% ~ 90%RH	10% ~ 90%RH
IP Rating(IP )	IP68 / IP68	IP68 / IP68	IP68 / IP68
Lifetime Typical Value(Hrs)	100,000 Hrs	100,000 Hrs	100,000 Hrs
Installation Type	Fix , Front installation	Fix , Front installation	Fix , Front installation
Maintenance Method	Front & Rear serviceable	Front & Rear serviceable	Front & Rear serviceable
Certications	TUV-CE,ET	TUV-CE,ET	TUV-CE,ET

On-site outdoor installation

Application

Schematic of the control system

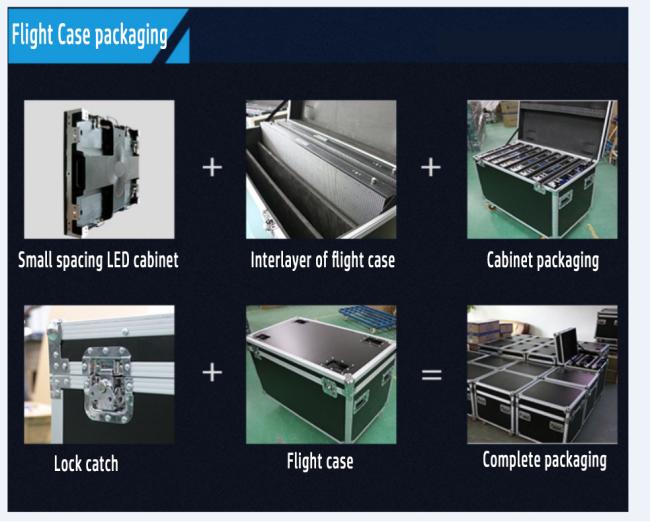

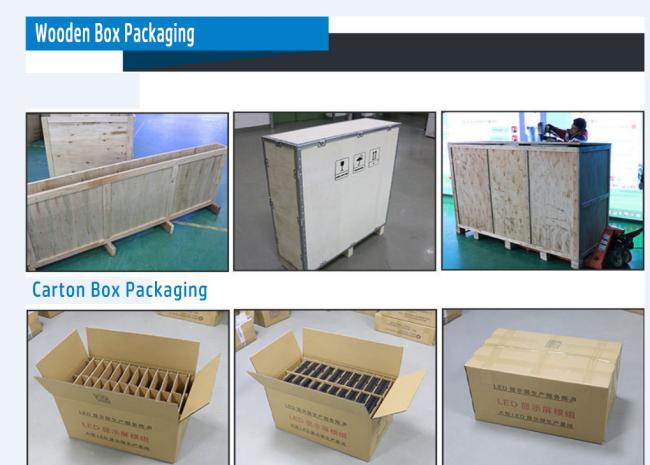

Packing&Shipping

Our Factory

FAQ

Pre-sale service: 1. Inquiries will be replied within 24 hours. 2. Market research and forecast for customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Data sheet and samples offered.

5. Other requireed services such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking producing procedures all the time.

2. Provide photos and videos as per customer's requirement during production.

3. Free spare parts provided.

How to order
You are just 6 simple steps

1. Know your application, indoor or outdoor use, fixed install in one place or move often.

2. Know you desired size or available space for the LED Display

3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.

4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.

5. Choose your resolution (pixel pitch) depending on your need and your budget.

6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right

led display for you.

What is after sale service?

RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.

How to install?

RE: We have 2 optional solutions.

a: Our professional engineers can go to your country to provide installation guidance on site, but you need to pay some fees,personnel $120 per day, and accommodation, airfare and so on.

b:Our company provides free training for new customers. When we confirm the order, you can send your engineers to our factory for free training. and our engineer will make the led cabinets which is very convenient for you to install it.

How are these LED lights controlled?

RE: We use colorlight control system. we can can provide C4 or C6 player box specification and manual. Before delivery, our engineer will shoot the video for installation and debugging. Including all connect cable video.main pow power cable ,main data cable connect diagram.

What the software your company uses for your product?

RE: Colorlight, Linsn or Nova is the main software we provide at the moment.
