Emergency release coupling (ERC) for marine loading - Active type(light)

Introduction

Breakaway coupling is applicable to the bottom loading and unloading of explosive media to prevent accidental breaking of truck, rail car and marine loading and unloading arm when they are not separated, resulting in leakage accidents. At the same time, the equipment of the vehicle, ship and loading arm shall be prevented from being damaged, so that the emergency break valve can disconnect the loading arm from the vehicle under the accidental pull of external force, and the media at both ends can be sealed by the emergency break coupling without leakage. It is also easy to recover after breaking.

Breakaway coupling for maritime: apply to loading and unloading for marine and river ship

Parameters

Material: 304, 304L, 316, 316L, 35#, A356, Hastelloy

Release manner: Clamp type (pull rope type), pull bolt type

Release will: active (hydraulic release), passive (pull off release)

Connection: flange connection, welding connection, thread connection

Medium: liquid, gas

Temperature: -196℃～+250℃

Pressure: PN1.0～PN4.0

Features

1. Flap type, no interception
2. Low resistance, high efficiency
3. Light weight, easy to operate

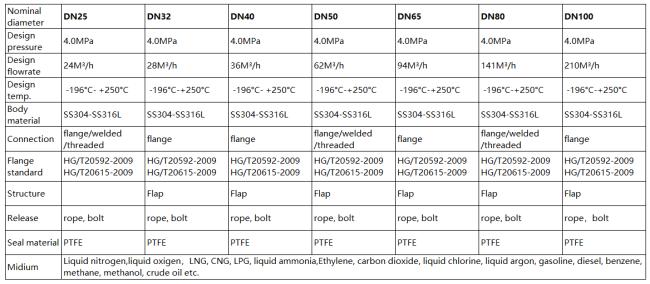

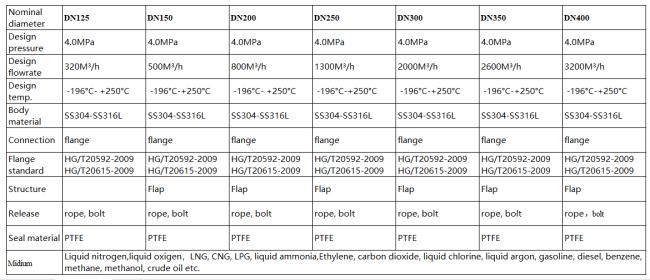

Specification
