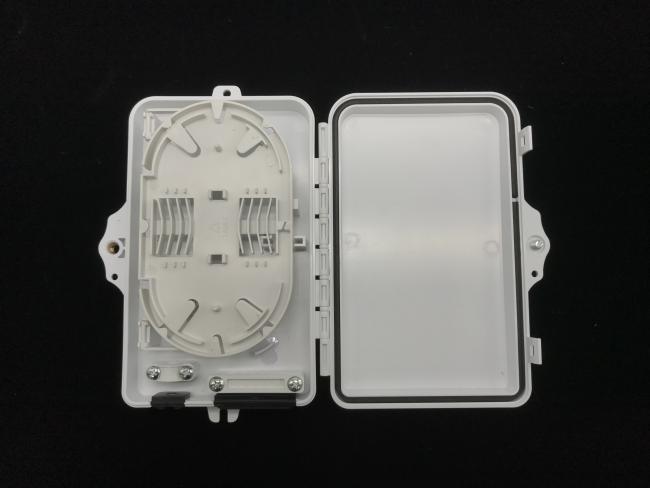

White Fibre Optic Distribution Box For Telecommunication Network
Description
The distribution box can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Feature
- Accommodation of 2 adapters
- Easy installation
- Suitable for SC sx and LC dx adapters
- Easy slick-in cover mounting
- Hinged and detachable splice cassette.
- Suitable for many type of modules installation,widely used in the area of cable wiring sub-system.
- Embedded box ,installation and removal easily with a protective door,proof dust.
- Any logo can be printed on the box according to customer requirements
- With the panel suitable for optical fiber SC/LC simplex,duplex mounted in different environments
- Whether in visible or flushed. Customers can choose the modules which you like.
- All the modules are free from weld;
Application:
FTTH, FTTB, FTTC
Telecommunication Network
Local Area Network
CATV
Specification
| Item | Technical parameters |
| 3.0 x 2.0 mm Rubber-insulated Fiber Cable or Indoor Cable | |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Tight Buffer Diameter | 250μm & 900μm |
| Applicable mode | SM&MM |
| Tensile strength | >50 N |
| Operating temperature | -40~+85℃ |
| Adapter type | SC & LC |
| Insertion Loss | ≤0.2dB(1310nm & 1550nm) |
Product Show
