OM3 OM4 LC to LC MM DX fiber optic cable 2MM 3M.5M.10M 50/125
Multi Mode Duplex OM3 LC/UPC 2mm 3m Fiber Optic Patch Cable High fiber density
WHAT IS OM3 Fiber Optic Patch Cable?
OM3 Fiber. OM3 fiber comes with an aqua color jacket. Like the OM2, its core size is 50 µm, but the cable is optimized for laser based equipment. OM3 supports 10 Gigabit Ethernet at lengths up to 300 meters.
Can you splice OM3 to OM4?
OM3 is fully compatible with OM4. So the difference is just in the construction of the fibre cable. The difference in the construction means that OM4 cable has better attenuation and can operate at higher bandwidth than OM3.
Products description
Duplex fiber patch cords are produce according to international standard, which are available in OS1/OS2, OM1, OM2, OM3, OM4 or OM5 exceed requirements of ANSI/TIA-568.3-D, also provide interconnect and cross-connect of applications over installation in entrance facilities, telecom rooms, data centers and work areas.The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment. Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss.
Features:
- Multimode
- High fiber density
- Fiber in single connector: 4, 8, 12 24...
- Insert/Pull latching connector
- High reflection loss with APC
- Small Form Factor
- Compliant with international standard such as ANSI,Bellcore, TLA/EIA, IEC,also according with the industrial standards of Telecom in China
- Realize the activelink of optic fiber transmission
- Low insertion loss and high return loss
- Excellent repeatability and interchangeability
Applications:
FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Active Device Termination
Premise Installations
Telecommunication and Data processing Networks
Video transmission , Data transmission
Specification
| Type | SM , MM | |||
| Connector | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| SM PC | MM PC | UPC | APC | |
| Insert Loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥40dB | ≥50dB | ≥65dB | |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Temperature Range(℃) | -40~+85 | |||

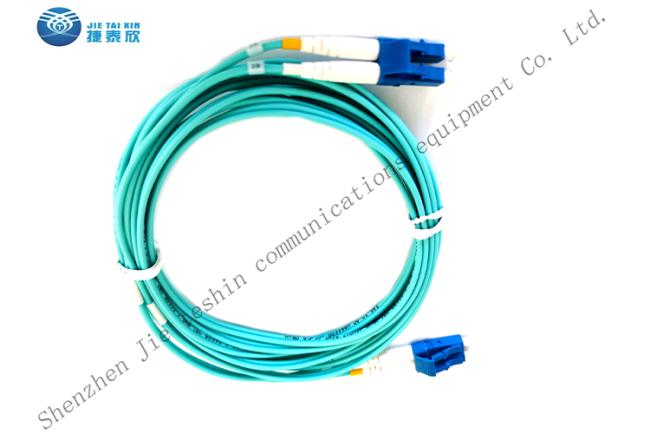

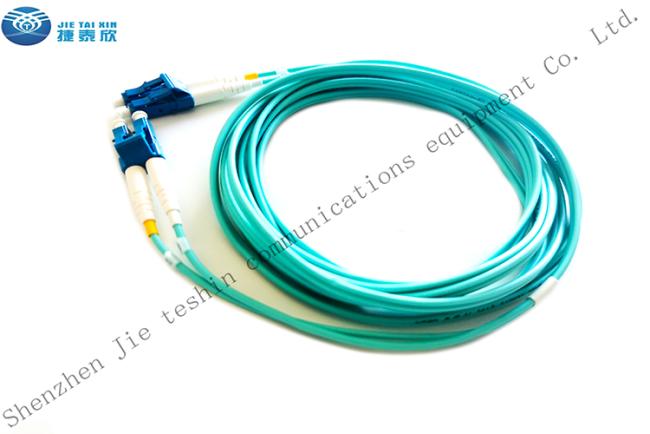

Product Show
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
