2X32 FC UPC PLC Fiber Splitter 1260NM to1650NM Excellent Environmental Stability
2X32 FC UPC PLC Fiber Splitter 1260NM to1650NM Excellent Environmental Stability

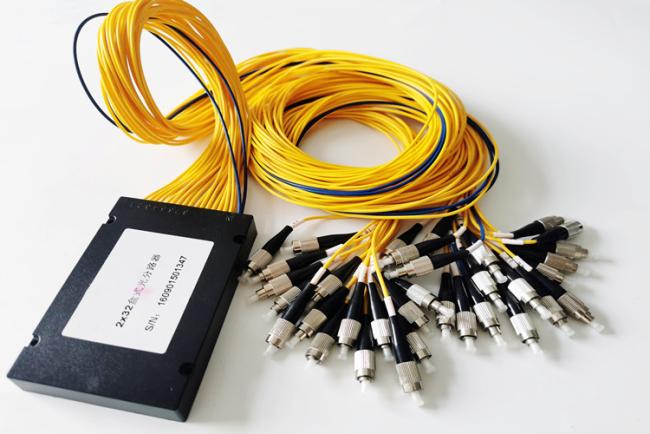

PRODUCT SHOW:
Description
Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
Features:
- Low Insertion loss
- Wide Operating Wavelength: From 1260nm to 1650nm
- Excellent Environmental & Mechanical Stability
- High Reliability and Stability
- Low PDL (Polarization Dependent Loss)
- Compact Design
Applications:
- FTTX (FTTB, FTTH, FTTC) Systems
- Passive Optical Network (PON)
- Cable Television (CATV)
- Optical Signal Distribution
Our service:
- We could print your company name on the cable.
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
Specification:
| 1 x N | ||||||||
| Parameter | Unit | 1 x 2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 | 1 x 64 | |
| Insertion Loss | Max. | dB | 3.8 | 7.0 | 10.4 | 13.9 | 17.2 | 22.0 |
| Channel Uniformity | Max. | dB | 0.6 | 0.5 | 0.5 | 1.4 | 1.6 | 2.5 |
| Polarization Dependent Loss | Max. | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Wavelength Dependent Loss | Max. | dB | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Temperature Dependent Loss | Max. | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Connector Dependent Loss | Max. | dB | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Operating Wavelength | Min.-Max | nm | 1250 ~ 1650 | |||||
| Return Loss | Min. | dB | 55 | |||||
| Directivity | Min. | dB | 55 | |||||
| Operating Temperature | °C | -40 ~ + 85 | ||||||
| Storage Temperature | °C | -40 ~ + 85 | ||||||
| Maximum Input Power | Max. | mW | 500 | |||||
| Fiber Type | - | ITU G.652D or G.657A | ||||||
| 2 x N | ||||||||
| Parameter | Unit | 2 x 2 | 2 x 4 | 2 x 8 | 2 x 16 | 2 x 32 | 2 x 64 | |
| Insertion Loss | Max. | dB | 4.0 | 7.3 | 10.7 | 14 | 17.5 | 22.5 |
| Channel Uniformity | Max. | dB | 0.8 | 1.0 | 1.0 | 1.5 | 1.8 | 3.0 |
| Polarization Dependent Loss | Max. | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.4 |
| Wavelength Dependent Loss | Max. | dB | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Temperature Dependent Loss | Max. | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Connector Dependent Loss | Max. | dB | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Operating Wavelength | Min.-Max. | nm | 1250 ~ 1650 | |||||
| Return Loss | Min. | dB | 55 | |||||
| Directivity | Min. | dB | 55 | |||||
| Operating Temperature | °C | -40 ~ + 85 | ||||||
| Storage Temperature | °C | -40 ~ + 85 | ||||||
| Maximum Input Power | Max. | mW | 500 | |||||
| Fiber Type | ITU G.652D or G.657A | |||||||
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
