FTTH 1X2 SC UPC Fiber Cable Splitter Low Insertion Loss OEM Accepted
1X2 SC UPC Good Uniformity Fiber Cable Splitter Low Insertion Loss OEM Accepted
Description:
The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal.
Applications:
1. Asynchronous Transmission Mode(ATM) Package for 100PCS :
2. Passive optical networks (PON)
3. Fiber to The Home (FTTH) Package dimensions : 62cm*31cm*23 CM
4. Local Area Networks (LAN)
5. Cable Television (CATV)
6. Test Equipment
Our service:
We could print your company name on the cable.
Standard and customized OEM products from small to large quantity are welcome.
Compliance with global environmental industry with RoHS and SGS standards.
All products are 100% fully tested by our technical expertise
Features:
Excellent directivity
High environmental and mechanical stability
Good channel-to-channel uniformity
High cost-effectiveness
Low insertion loss
Specification:
|
PLC Splitter Type |
1×2 PLC Splitter |
|
Connector Type |
SC/APC,SC/UPC,LC FC ST |
|
Fiber Length |
1m or 1.5m or customized |
|
Package Style |
ABS Module |
|
Fiber Type |
Singlemode G657A1 or G652D |
|
Operating Bandwidth |
1260~1650nm |
|
Fiber Diameter |
0.9mm.2.0mm,3.0mm |
|
Typical Insertion Loss (≤) dB |
3.9 |
|
Insertion Loss (≤) dB |
4.2 |
|
Loss Uniformity (≤) dB |
0.4 |
|
Polarization Dependent Loss (≤) dB |
0.2 |
|
Wavelength Dependent Loss (≤) dB |
0.3 |
|
Return Loss (≥) dB |
50 |
|
Directivity (≥) dB |
55 |
|
Temperature Dependent Loss (≤) dB |
0.5 |
|
Max Temperature Dependent Loss (-40~85°C) |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
|
Storage Temperature (°C) |
-40~85 |

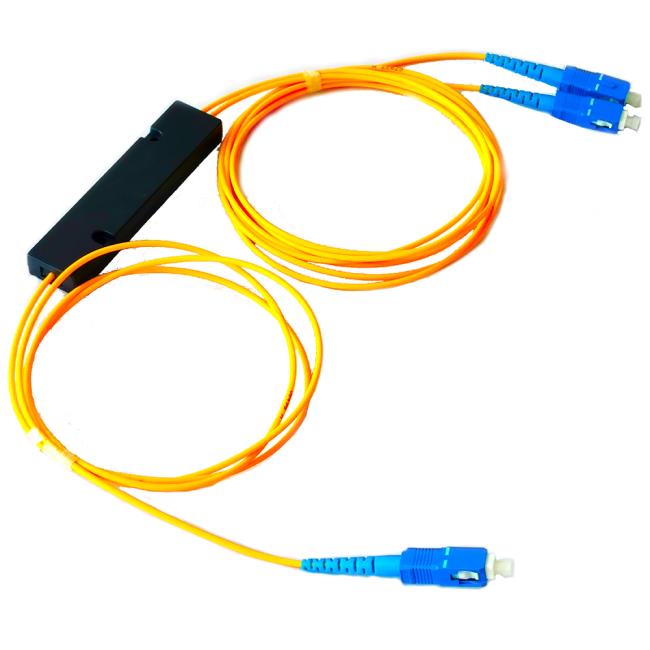

PRODUCT SHOW:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
