JTX-LC -LC APC UPC 4 core Fiber Coupler Adapter Standard Flange
LC to LC APC UPC 4ports fiber coupler adapter standard flange
Description:
Optical adapter is a fiber optic connecting part on the activities of linking components. The complete series of products, including FC, SC, ST, LC, MTRJ.
fiber optic adapter or coupler is a special connector designed to mate or connect two ends of a fiber optic cable with high precision. The adapter uses a simple design: the ends of two separate fiber optic cables with fiber optic connectors fit into two slots opposite each other. The slots are designed to precisely align the two ends so that there is minimal to no signal loss.SUNET'S Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber opticcables or fiber optic connectors between two fiber optic lines.
Features:
Low insertion loss
Simplex or duplex
Good exchangeability and repeatability
High prcision alignment
Durability >1000 times
Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
Application:
CATV networks
Local Area Network
Instrumentation
Telecommunication
Adapter Panel
ODF Frame
| Project | Specifications | |
| Applicable connector type | FC,ST,SC,LC,MU,MTRJ,ST-SC,FC-SC,ST-FC | |
| Connector fiber type | Single mode | Multimode |
| Test wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insertion loss | Typical value: ≤0.15dB Maximum value: ≤0.20dB |
Typical value: ≤0.15dB Maximum value: ≤0.20dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Pluggable performance | Change in loss after 1000 insertions and removals≤0.20dB |
|
| Number of channels | Single core, dual core, 4 core | |
| Frame material | Metal or plastic | |
| Sleeve material | Ceramic or metal | |
| Operating temperature | -20℃to +70℃ | |
| storage temperature | -40℃to +85℃ | |

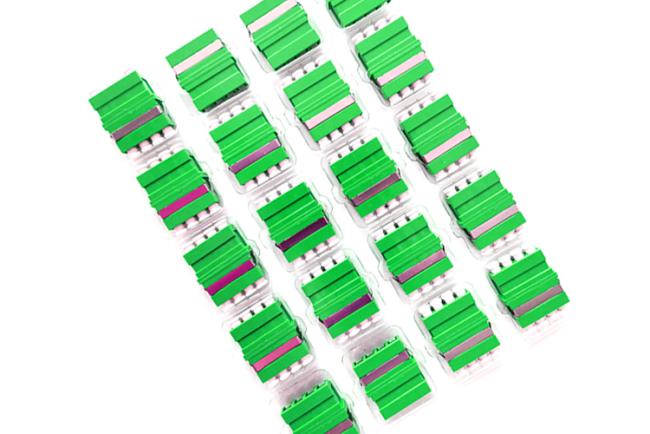

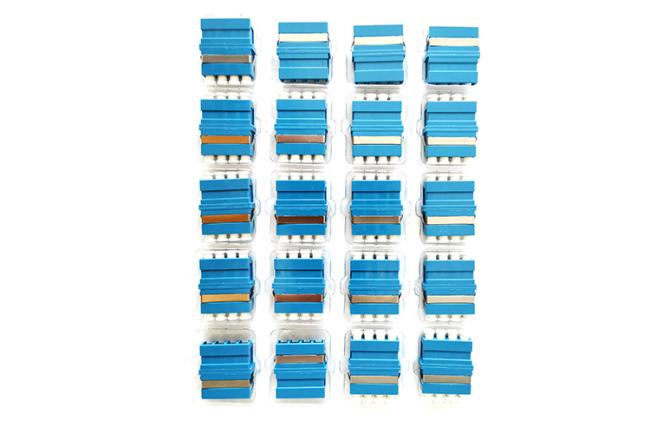

product show:
Question and answer:
1. What is your MOQ?
Otop : Normally is 1pcs/item,could be coordinated if you have detail requirements.
2. How about your delivery date?
Otop: Delivery date is about 3-5days, it depends on the order quantity.
3. Can you supply sample for customers?
Otop: of course, however the delivery cost will be charged on customer's account.
4. How about your price?
Otop: We are supplying products with very competitive price based on good performance.
5. Do you offer OEM Service ?
Otop: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce
