7000 Nits Outdoor LED Advertising Screen 960x960mm cabinet 23KG
7000 Nits Outdoor LED Advertising Screen
P8 outdoor led advertising signs For Bank / Hospital high brightness 7000 nits
7000 Nits P6 P8 P10 Outdoor LED Advertising Screen Magnesium Alloy Cabinet 960*960mm
Features:
1. Outdoor display: IP65 waterproof grade and certification through SGS
2. Complete series products, customized for your different need.
3. Strong cabinet with reinforcing rib, tensile and quakeproof, with dissipation holes, lifespan more than 10 years.
4. Support dot by dot correction, to make sure the consistency of color and brightness for one screen.
5. Using power saving IC driver and special design PCB ,lower current power supply to save energy more than 30% ;
Aplication:
Supermarkets, home, office, school, warehouse, shopping malls , hospitals ,production line , metro stations etc.
Specifications:
| 1 | Outdoor Advertising LED Display | |
| 2 | Model No. | AE-P8 |
| 3 | Pixel Pitch | 8mm |
| 4 | LED Type | SMD3535 |
| 5 | Configuration | 1R1G1B |
| 6 | Module Resolution | 40*20 pixels |
| 7 | Module Size | 320*160 mm |
| 8 | Pixel Density | 15625 pixel/㎡ |
| 9 | Refresh Rate | ≥ 1920Hz |
| 10 | Gray Scale | 16 Bit |
| 11 | Brightness | ≥ 6000-7000 cd/㎡ |
| 12 | Scan Mode | 1/5 |
| 13 | Frame Rate | 50HZ~60HZ |
| 14 | Viewing Angle | H:140°, V:140° |
| 15 | Material | Iron/Aluminum |
| 16 | Cabinet Resolution | 120*120 pixels |

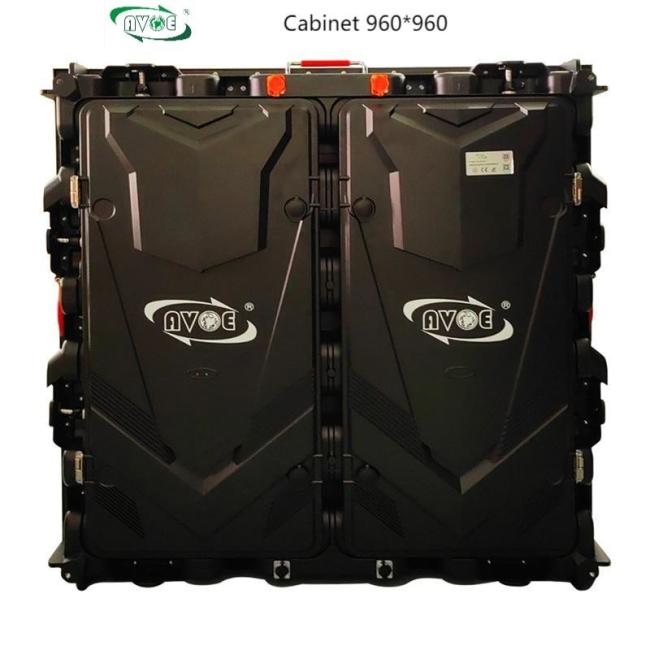

| 17 | Cabinet Size | 960*960*120mm |
| 18 | Cabinet Weight | 26 Kgs/m2 |
| 19 | IP Rating | Front IP65, Rear IP54 |
| 20 | Max.Power Consumption | 780W/Panel |
| 21 | Avg.Power Consumption | 300W/Panel |
| 22 | Control System | Nova/Linsn |
| 23 | Operation System | Windows/me/200NT/XP |
| 24 | Working-Temperature | -20℃~60℃ |
| 25 | Working Humidity | 10%~90% RH |
| 26 | Input Voltage | AC 110~220 V (±5%) |
| 27 | Blind spot rate | ≤0.01% |
| 28 | MTBF | 35000 Hour |
| 29 | Lifespan | 100000 Hour |
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
