ABS Cassette Type Fiber Optic Splitter 1x32 Capacity 1260 - 1650nm Wavelength
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
2-3 working days
Brand:
Haiyu Optical
Product Description

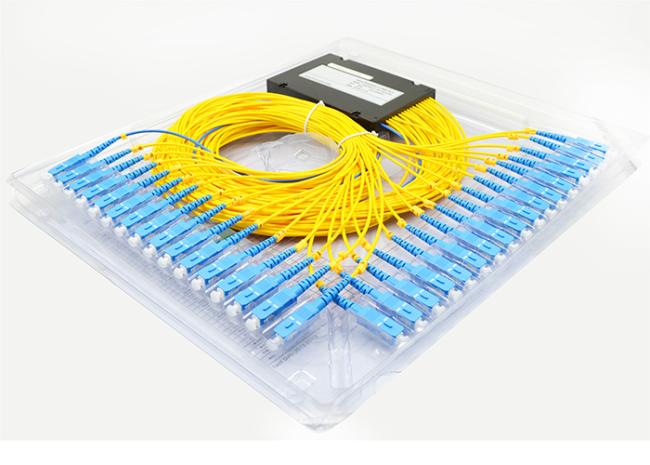

1x32 Optical Splitter ABS Cassette Type PLC Module
Product Description:
PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.
Specification:
| Type | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 |
| Fiber Type | 9/125um SMF28e or customer specified | ||||||||
| Operation Wavelength | 1260~1650nm | ||||||||
| Insertion Loss (dB)(Typ) | <7.1 | <7.3 | <10.0 | <10.3 | <13.5 | <14.0 | <16.8 | <17.3 | <20.0 |
| Insertion Loss (dB)(Max)1 | <7.5 | <7.7 | <10.5 | <10.8 | <14.0 | <14.7 | <17.5 | <18 | <20.3 |
| Uniformity (dB)(Max) | <0.7 | <1.0 | <1.0 | <1.2 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
| Polarization Dependent Loss (dB)(Max) | <0.3 | <0.40 | <0.30 | <0.40 | <0.3 | ||||
| Directivity (dB)(Min) | ≥55 | ||||||||
| Return Loss (dB)(Min) | ≥55 | ||||||||
|
Operating Temperature ( oC) |
-40 to +85 | ||||||||
|
Storage Temperature ( oC) |
-40 to +85 | ||||||||
Insertion loss is excluding connector loss at typically 0.2dB.
Product Types:
- PLC Splitter Modules
- Blockless PLC Splitters
- PLC Splitter Boxes
Features:
- Compact Size
- Low insertion and low PDL
- Excellent environmental stability
- Compliant with Telcordia GR-1209/1221-Core
- Good uniformity
- Wide operating temperature range
- High reliability and stability
- SC LC FC ST Connectors Avaliable
Applications:
- FTTx (FTTP, FTTH, FTTN, FTTC)
- Passive Optical Networks (PON)
- Local Area Networks (LAN)
- CATV system
- Test equipment
