Plenum OFNP MPO Fiber Optic Patch Cord Single Mode OS1 OS2 OM1 OM2 OM3 OM4 OM5
Singlemode OS1 OS2 OM1 OM2 OM3 OM4 OM5 Plenum MPO Fiber Optic Patch Cord
Plenum MPO Fiber Optic Patch Cord description:
MPO Plenum Fiber Optic Patch Cords are the most economic multifiber cables. These cables can combine up to 144 fibers in a single MPO cable assembly. It greatly reduces the overall cost and setup time for even the most complex fiber optic networks. These MPO cables feature Plenum rated insulation. Which is designed to be more fire retardant than standard cables. Which therefore will emit sufficiently less smoke than ordinary fiber optic cables.
Haiyu’s Plenum MPO Fiber Optic patch cords are designed to meet building regulations for fire resistant cabling. Because of this, these cables are the ideal choice to be installed in the inner walls and ceilings of buildings rather than standard cables. Plenum rated cables are designed to be fire resistant, as a result produce far less smoke in contrast to other cables. Need cables that require floor or outside installations? Riser or armored jackets may be a better solution. Haiyu Optical offers a full line of MPO patch cords in riser and armored jackets.
Plenum MPO Fiber Optic Patch Cord specification:
| Parameters | Min. | Typical | Max. | Unit. | |
| Operating Wavelength | Single Mode | 1310 | 1620 | nm | |
| Multi-mode | 850 | 1310 | |||
| MPO Insertion Loss | Single Mode | 0.6 | dB | ||
| Single Mode Low Loss | 0.3 | 0.35 | |||
| Multi-mode | 0.75 | ||||
|
Single Fiber Insertion Loss (Fan-out side) |
Single Mode | 0.2 | dB | ||
| Single Mode Low Loss | 0.3 | ||||
| Multi-mode | 0.3 | ||||
| Return Loss | Single Mode | 50 | dB | ||
| Single Mode Low Loss | 60 | ||||
| Multi-mode | 30 | ||||
| Operating Temperature | - 20 | + 70 | °C | ||
| Fiber Type |
SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2 |
||||
| Cable Jacket Type | Ribbon / Fan-out | PVC | |||
| Cable Jacket Color | Yellow | G652 and G657 Single mode fiber | |||
| Orange | OM2 Multi-mode fiber | ||||
| Aqua | OM3 fiber | ||||
| Flammability Rating | IEC-60332-1, IEC-61034, IEC-60754-1 and 2 | ||||
Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.
Plenum MPO Fiber Optic Patch Cord features:
- Improves and simplifies fiber routing
- Decreases fiber management space
- OEM or customized for special applications
- Low insertion loss and reflectance
Plenum MPO Fiber Optic Patch Cord Applications:
- Optical System Access Network
- Telecommunications networks
- Broadband/CATV networks
- Data communications networks, including high-bandwidth equipment

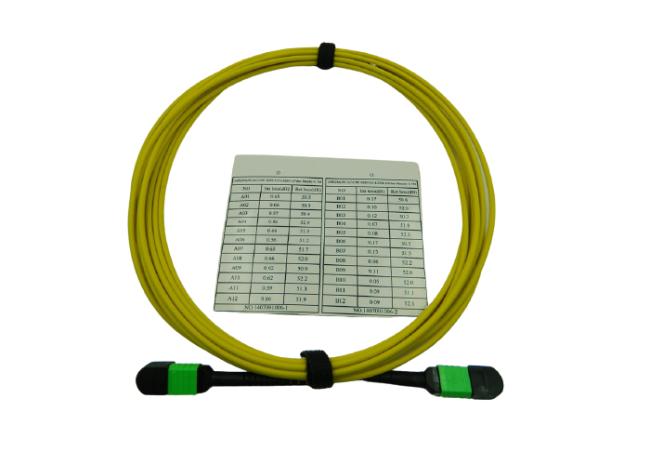

Plenum MPO Fiber Optic Patch Cord pictures:
