Powdered 325mesh Molecular Sieve 13x
Powdered 325mesh Molecular Sieve 13x
Product Description
13X zeolite molecular sieve powder: siliconaluminium acid sodium silicate; white powder, fine powder evenly,no pollution form visible; is a kind of sodium aluminum silicatecrystals containing water, belonging to the silicate category, large specific surface area, strong ability of calcium exchange, good fluidity.
Technical Index Of Activated Alumina Desiccant
| Technical indicators of zeolite molecular sieve raw powder | ||||
| Type | 3A molecular sieve | 4A molecular sieve | 5A molecular sieve | 13X molecular sieve |
| Chemical formula | K7.2Na4.8[(AlO2)12 | NaO.Al2O3. | Ca4.5Na3[(AlO2)12 | NaO.Al2O3. |
| (SiO2)12]m H2O | SiO2.4.5H2O | (SiO2)12].m H2O | 2.5SiO2.6.2H2O | |
| Color & shape | white,powder | white,powder | white,powder | white,powder |
| Crystallinity % | ~100% | ~100% | ~100% | ~100% |
| Water adsorption% | ≥25 | ≥27 | ≥28 | ≥32 |
| CO2 adsorption value% | ≥22.5 | ≥22.5 | ||
| Ignition loss% | ≤22 | ≤22 | ≤23 | ≤24 |
| PH5% | ≤11 | ≤11.5 | ≤10.5 | ≤11.5 |
| Cl-(%) | ≤0.2 | — | ≤0.2 | — |
| K2O(%) | ≥13 | |||
| K2O/Al2O3(%) | ≥40 | |||
| CaO(%) | ≥13.5 | |||
| CaO/Al2O3(%) | ≥70 | |||
| Bulk Density
G/cm3 |
0.5 | 0.4 | 0.6 | 0.4 |
| Application | Used for drying ethylene, propylene ethanol | Used for dehumidification in oil and gas fields | Used for the separation of purified gas and liquid from air | Used for the separation of purified gas and liquid from air |
| The determination of water adsorption is the amount of water per 100 g of adsorbent at RH=50% and 25º C | ||||
Application
For ethylene, propylene alcohol drying
For oil and gas dehumidification
Used in the manufacture of purified oxygen-enriched air.
For the separation and purification of gas liquid air.
Determination of water absorption and water per 100 g of adsorbentat RH = 50% and 25 º C

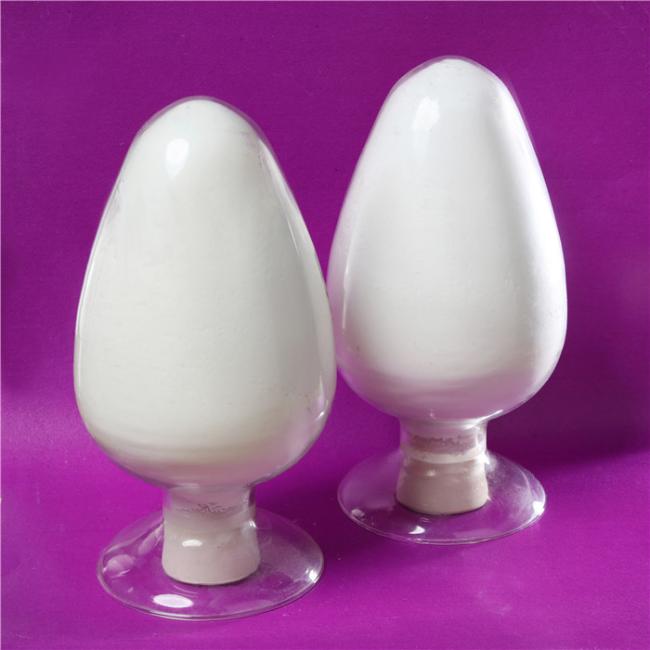

Product Pictures

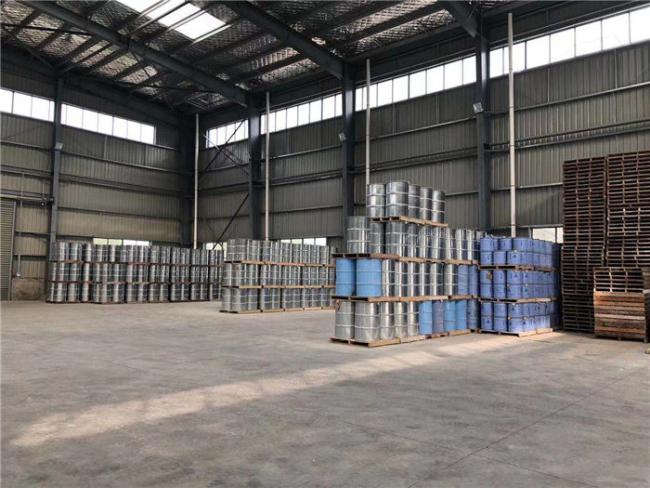

Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
