2.4mm XH-5 Refrigerant Desiccant Chemical Auxiliary Agent
2.4mm XH-5 Refrigerant Desiccant Chemical Auxiliary Agent
Product Description
XH seriesMolecular Sieve regenerated and reused. To regenerate the sieve you need to remove the adsorbed moisture and other materials. To regenerate XH series Molecular Sieve heat to 250℃to 450℃.The service life of most refrigeration systems depends on when the refrigerant leaks. The leakage of refrigerants is caused by the corrosion of pipes by the harmful substances produced by the refrigerant and the trace moisture contained in it. The molecular sieve has the characteristics of low dew point control, high strength, low wear and does not damage the chemical stability of the refrigerant.
| Application: | ||||
|
XH-5: Desiccant suitable for cars (e.g. Wagon ,refrigerator Santana car, motorcycle,) Air conditioner, refrigerator,and as R12,R22 cooler desiccation. |
||||
|
XH-7: is used for dehydration and drying of new refrigerants R-134a In household and commercial refrigerators. Iceboxes and air conditioners. It is also used for specialized refrigerants such as butane In green refrigerators. |
||||
| XH-9: is used commercially in drying refrigerants in air conditioners, iceboxes and refrigerators In car, station wagons, refrigerating trucks, trains and shipper. |
||||
|
XH-11: is used for dehydration and drying of new refrigerants R-407C,R-410 etc. |
Technical index:
| Items | Unit | Technical index | |
| XH-5 | XH-7 | ||
| mesh | mm | 1.7-2.4 | 1.7-2.4 |
| Static water adsorption | % | ≥20.5 | ≥20.0 |
| Bulk density | kg/l | ≥0.80 | ≥0.80 |
| Compressive strength | N | ≥66 | ≥66 |
| Wear rate | % | ≤0.20 | ≤0.20 |
| Package moisture content | % | ≤1.5 | ≤1.5 |
Storage
The molecular sieve should be stored at room temperature, and the relative humidity is not more than 90% indoors: avoid water, acid, alkali, isolate the air, and store in airtight
Packaging
It can be packaged according to the needs of customers.

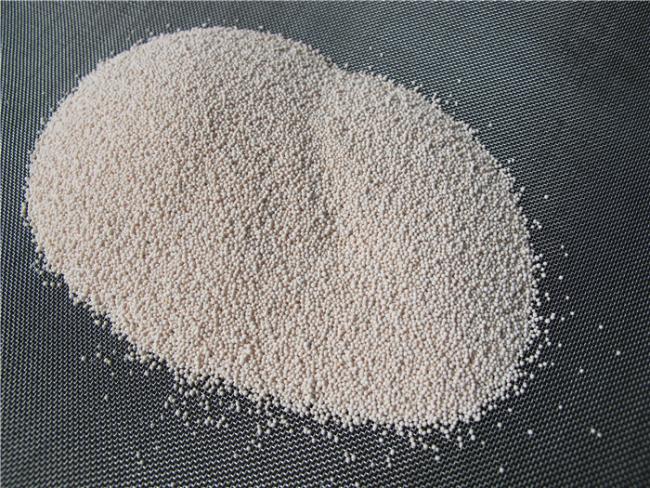

Product Pictures
Factory information
Shanghai Xuefeng Molecular Sieve Co., Ltd. adopts the most advanced and fully automated assembly line molecular sieve production technology in China, and has positions for dosing, kneading, extrusion, drying, roasting and packaging. The main equipment includes pelletizing machine, hardening cylinder, kneader, extruder, belt dryer, rotary roasting furnace, vibrating screen, scale and other ancillary facilities. The production process parameters are all automatically controlled, and there is no paper recorder attached. , The results of the process parameters are comprehensively recorded, and at the same time, the operators of each position shall manually record the parameters every hour to ensure the traceability of the operation process. At the same time, the company pays attention to the inspection of intermediate products, and has set up sampling points for intermediate products in the ingredients, extrusion molding, and drying positions to ensure that the intermediate products meet the specified quality requirements.
