High Pressure Double Vane Pump Cartridge Stainless Steel Gear Pump
T6,T7 Series Double Vane Pump
product description:

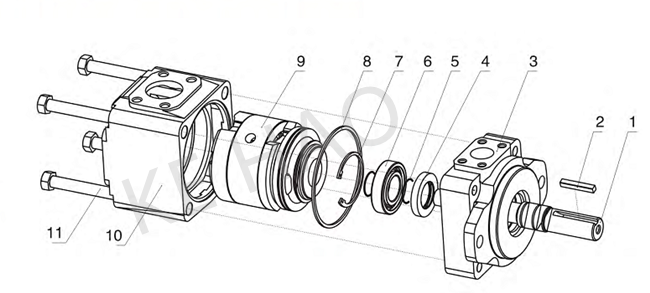

| serial number | name | serial number | name | serial number | name |
| 1 | shaft | 5 | Steel wire retaining ring for shaft | 9 | pump core |
| 2 | flat key | 6 | antifriction bearing | 10 | rear cover |
| 3 | protegulum | 7 | circlip for hole | 11 | External hexagon-head bolt |
| 4 | grease seal | 8 | rectangular seal |
| Series | Flow code | Rotation | outlet port positiongs | Sealing level |
| T7B |
B02/B03/B04/B05/B06/ B07/B08/B10/B12/B15 |
(View from shaft end of pump R-Clockwise(CW) L-Counterclockwise(CCW) |
(View from shaft end of pump Opposite inlet port Inline with inlet 90angle CCW trom Intet |
NBR Fluorine rubber |
| T7D |
B14/B17/B20/B22/B24 /B28/B31/B35/B38/B42 |
|||
| T7E |
042/045/050/052/054/ 057/062/066/072/085 |
|||
| T6C |
003/B03,005/B05,006/B06,008/B08,010/ B10,012/B12,017/B14,017/B17,020/ B20,022/B22,025/B25,02B/B28,031/B31 |
|||
| T6D |
014/B14,017/B17,020/B20,024/B24, 028/B28,038/B38,042/B42,045/B45,050/B50,061 |
|||
| T6E | 042,045,050,052,057,062,066,072,085 |
Our advantage :
1 . Our pumps and parts are of exceptional quality .
2 . Our equipment is provided at an economic cost .
3 . We are proud of our fast response time and quick delivery times .
4 . We maintain a comprehensive stock-holding of spares .
5 . We carry out in-house porting to exact customer requirements .
6 . We have a professional custom-design capability at your service .
7 . We deliver internationally .
8 . Our Company Supply Parts For Excavators:Aftermarket Parts / Oem / Original / Made In China .
