16/32/64/128/256 QAM HD One Way Digital Set Top Box With Sim Card Slot
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
JiZhong
Product Description

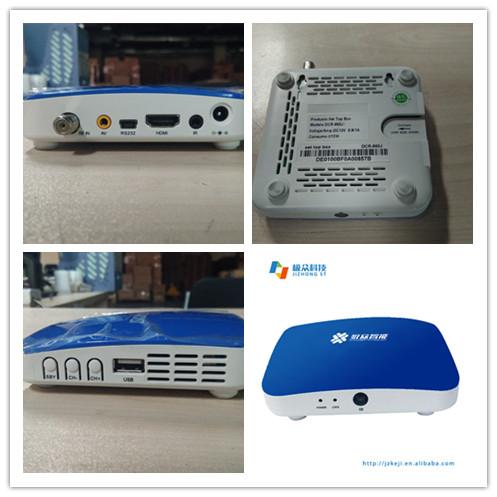

16/32/64/128/256 QAM DVBC HD One-way Digital TV Set Top Box With Sim Card Slot
DVBC HD Set Top Box DCR-860J adopts advanced QAM demodulation/MPEG-2/H.264/AVS/AVS+decoding technology, which able to receive and decode digital TV program from DVB/MPEG/H.264/AVS/AVS+ compatible with CATV network.
Technical Parameters:
| Frequency | 47-862MHz |
| Channel Standard | DVB-C EN300 429 |
| Modulate type | 16/32/64/128/256QAM |
| Symbol Rate | 3.6-6.952MS/s |
| Video Decode | MPEG-2MP@ML/MPEG4SP@ASP/Divx/AVS/AVX+/Real/VC-1/H.264/H.265 |
| Video output | 1080P50(60)/1080i/720p/576p |
| Audio encode | MPEG-1(layer1&2/MPEG-2/AAC/AC3/RA/WMA/Dolby digital plus |
| Audio mode | L/R/STO |
| CPU process speed | Main frequency@700MHz |
| FLASH memory | 8MB |
| RAM memory | 128MB |
| Display | POW/CLOCK LED indicator |
| Panel Button | Standby/channel |
| RF input | British F type |
| Audio output | PJ-322(L/R/CVBS) |
| HDMI output | HDMI1.3b(HDCP) |
| USB | USB2.0 |
| IR loop out | Mini USB-RS232 |
| Input voltage | DC:12V/0.8A |
| Power consumption | 10W(max) |
| Dimension | 112*112*24mm |
