Mpeg4 Free To Air H.264 Smart TV Set Top Box With M88CC8201-T Chipset
Price:
Negotiated
MOQ:
1pc
Delivery Time:
3-40days
Brand:
Jizhong
Product Description
Smart TV DVB- C Montage chip Free-To-Air Set-Top-Box H.264 For Cable Tv
Main function
| Fully conform to DVB-C/MPEG-2/4/h.264/AVS/AVS+ standard; |
| Support multiple star level QAM modulation mode(16/32/64/128/256QAM); |
| Supporting standard EPG, it can achieve weekly information and PVR management as well as EPG advertisement business; |
| Supporting mainstream middleware and customized information business; |
| Supporting PVR appointment and real-time reccording as well as encryption application; |
| Supporting outside storage device time shift and back play function; |
| Build in player supporting USB local Video/Music/photo playing; |
| High-performance achieve from standard definition to high definition full forwarding smoothly; |
| Supporting Loader upgrade in the air via manual, Automate and USB mode and etc; it can upgrade new version software online in time; |
 |
Technical Parameters
| Items | Parameters |
| Input Frequency: | 47--862NHZ |
| Signal Chan-nel standard: | DVB-C EN300 429 |
| Decoding Modulation mode: | 1632/64/128/256QAM |
| Symbol rate; | 3.6-6.952MS/s |
| Video output: |
MPEG-2MP@ML/MPEG-4SP@ASP/H.263/H.264 |
| Video output: | 1080p50(60)/1080i/720p/576p |
| Voice decoding: | MPEG-1Layer1&2/MPEG-2/AAC/AC3/RA/WMA |
| Voice mode: | Left Chan-nel, right Chan-nel, stereo |
| CPU processing speed: | main frequency @700MHZ |
| Flash memory: | 8MB |
| RAM memory: | 128MB |
 |
|
| panel display: | Power/clock LED indicator |
| Panel button: | standby/Chan-nel±3 key mode design |
| RF input: | English F-Female |
| Voice Vedio output: | PJ-322 interface (L/R/CVBS) |
| HD-MI output: | HD-MI 1.3b (supporting HDCP) |
| USB interface: | USB2.0 (Horizontal mode) |
| IR loops: | 3.5mm plug hole |
| Data interface: | MiniUSB-RS232 |
| Power consumption: | 10W(MAX) |
| Dimension: | 112mmx112mmx24mm |

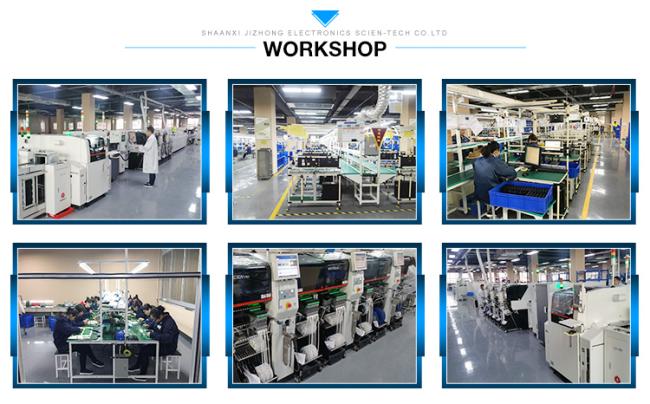

Factory overview
| Established in 1999; Stock code:835316; |
| A team of 30(Thirty)Experienced hardware and software engieeners; |
| Membership of SARFT cable digital TV application technology laboratory; |
| Imported production line from Fuji, Samung, Agilent,Tektronix; |
| Dolby certified. |
