Digital HD Cable Set Top Box Fully Compliant With DVB-C EN300429 And Up To 1080p
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
5 work days
Brand:
JiZhong
Product Description
DVB-C Cable TV Set Top Box Support English Interface And Multiple Conditional Access System
Outline:
The device meets the DVB-C standard and supports English and Chinese interfacing as well as multiple conditional access system, PAL/NTSC auto switching, EPG pre-viewing, on-line upgrade, on display of advertises and dvertise menu.
Technical Specifications:
| Input features | |||
| Input frequency range | 47~862MHz | Symbol rate range | 3.6~6.952MS/S |
| Input impedance | 75Ω | Input level | 35 ~ 85 dBuV |
| Video Features | |||
| Decode format | MPEG-2 | Bit rate | 2 ~ 15Mbps |
| Output format | NTSC/PAL | Image resolution | 1920x1080 |
| Audio Features | |||
| Audio decoding | MPEG-1/MPEG-2/AAC/AC3 | Audio output | L/R |
| Output type | RCA | Audio distortion | ≤1.5% |
| Signal demodulator | |||
| Demodulate mode | QAM 16/32/64/128/256 | Input Voltage | DC:12V/0.8A |
| Power Consumption | 10W(MAX) | Size | 112x112x24mm |
Package:

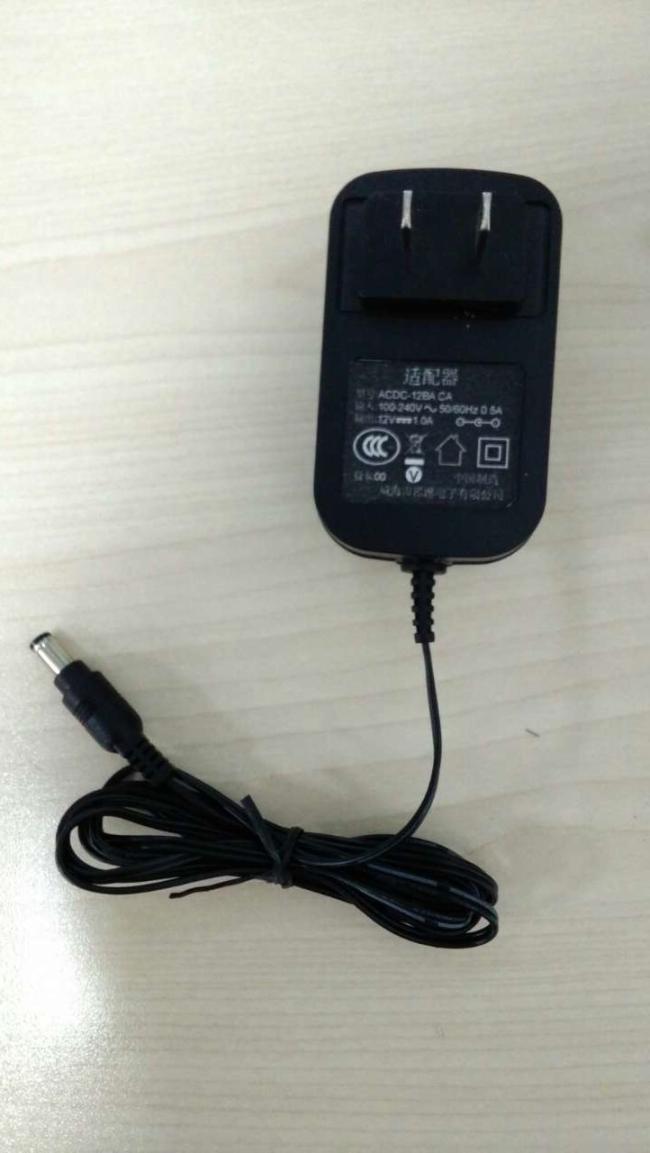

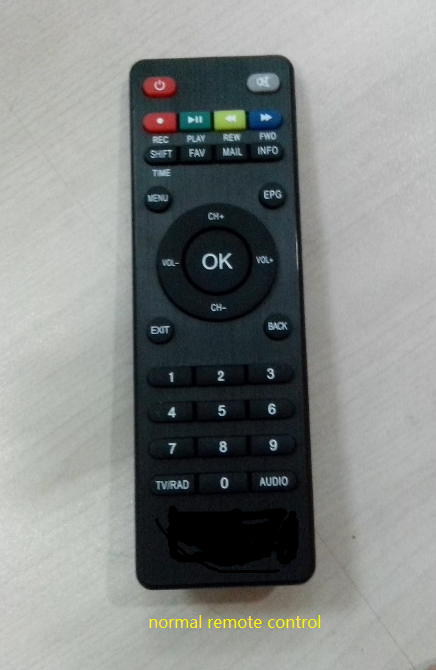

Accesories:
